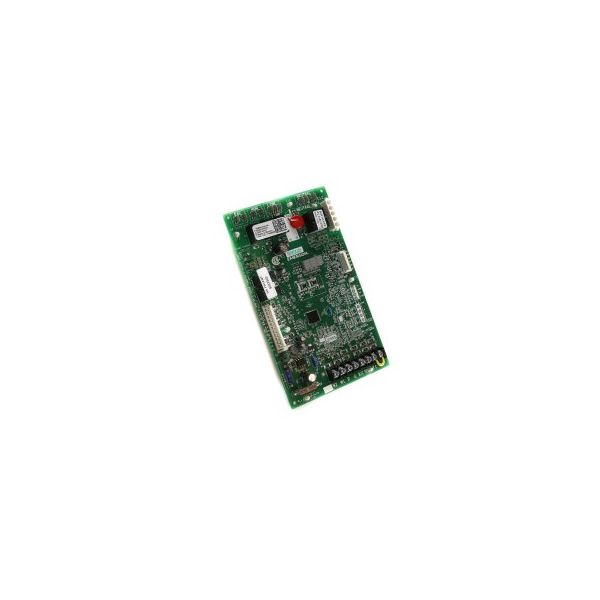

Trane CNT08121 Control Circuit Board IFC-2-CTM S9X2

Be the first to review this product
Special Price $262.23 Regular Price $377.95
Out of stock
SKU
CNT08121
The Trane CNT08121 Control Circuit Board IFC-2-CTM S9X2 is an integrated furnace control component used to coordinate and manage operational sequencing across major elements. It interprets input signals from sensors, thermostats, and protective elements, then sends structured output commands to airflow handling, ignition sequence, and fuel delivery operation. Built for two-stage performance, it adjusts based on heating to maintain controlled operation across varying conditions. In HVAC systems, it is installed within the furnace electrical compartment communication flow and operational logic throughout heating cycle.
Add to Wish List
HVAC Controls & Electrical, Control Boards & Modules
Manufacturer:
https://www.partshnc.com/media/catalog/product/c/n/cnt08121.jpg
Write Your Own Review
You're reviewing:Trane CNT08121 Control Circuit Board IFC-2-CTM S9X2
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Trane CNT08121 Control Circuit Board?

Regularly inspect the board for dust, debris, or signs of corrosion. Ensure all connections are secure and check for burnt or damaged components. Maintaining cleanliness and proper installation prevents malfunctions and ensures safe, accurate system operation. Handle with care to avoid static damage.

What are common issues with the Trane CNT08121 Control Circuit Board?

  • System not responding or intermittent operation.
  • Blown fuses or tripped breakers.
  • Fault codes or error messages displayed.
  • Loose or corroded connections affecting performance.

Installation Steps

Step 1: Turn off all power to the HVAC system at the main breaker for safety.

Step 2: Remove the access panel to expose the existing control board.

Step 3: Disconnect all wiring and note each connection for reference.

Step 4: Remove the old control board and mount the new board securely.

Step 5: Reconnect all wires according to the wiring diagram provided by Trane.

Step 6: Replace the access panel, restore power, and test system operation.
