main product photo

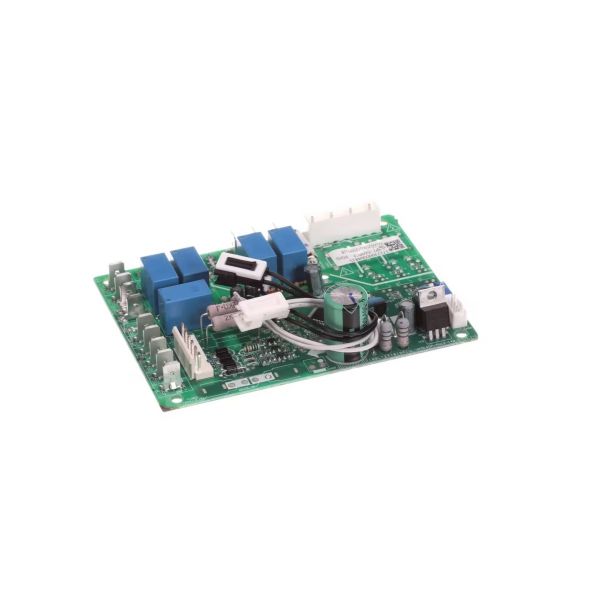

Trane BRD06611 Outdoor Main Control Board

Rating:
5 5 1
1  Review Add Your Review
Special Price $89.00 Regular Price $122.95
In stock
SKU
BRD06611
The Trane BRD06611 Outdoor Main Control Board is a printed circuit board that integrates major operates in HVAC systems. It gets inputs via sensors, thermostats, parts, and processes that information to manage the compressor, condenser fan, defrost logic, and other operational sequences. This board is installed in the electrical compartment of the outside unit and acts as the central controller of the system, timing of operation, diagnostics and logic of operation to make the heat pump or air conditioning equipment operate correctly.
Add to Wish List
HVAC Controls & Electrical, Control Boards & Modules
Manufacturer:
https://www.partshnc.com/media/catalog/product/b/r/brd06611.jpg
Write Your Own Review
You're reviewing:Trane BRD06611 Outdoor Main Control Board
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Trane BRD06611 Main Control Board?

Regularly inspect the control board for dust, debris, or corrosion. Ensure all electrical connections are secure and dry. Use a soft brush or compressed air for cleaning. Maintenance aids to prevent malfunctions and ensures safe, accurate operation of the HVAC system.

What are common issues with the Trane BRD06611 Main Control Board?

  • Board failing to start the outdoor unit.
  • Intermittent or no response to thermostat signals.
  • Blown fuses or tripped breakers.
  • Error codes related to communication or sensor faults.

Installation Steps

Step 1: Turn off and lock out power to the outdoor unit to prevent electrical hazards.

Step 2: Remove the access panel to locate the existing control board.

Step 3: Disconnect all wiring, labeling connections for accurate reinstallation.

Step 4: Unscrew and remove the old board from its mounting position.

Step 5: Install the new board securely in the original location.

Step 6: Reconnect all wires, restore power, and test the system for proper outdoor unit operation.
