main product photo

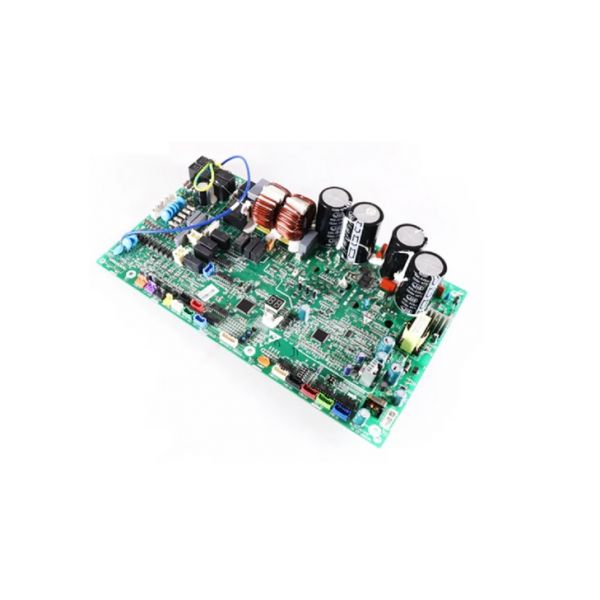

Trane BRD05311 Main Control Board 30226254 Version 5.2 Or Newer

Rating:
5 5 1
1  Review Add Your Review
Special Price $571.83 Regular Price $830.95
In stock
SKU
BRD05311
The Trane BRD05311 Main Control Board 30226254 Version 5.2 or newer is an electronic control component used to manage and coordinate the operating operations. It processes input signals from connected sensors and controls essential equipment operations, including heating, cooling, fan operation, and protective sequences in HVAC systems. It is placed within the units control compartment, and it operates as the central controller that to maintain proper transmission between electrical components for consistent system performance. It is used to restore normal operation and support accurate equipment control.
Add to Wish List
HVAC Controls & Electrical, Control Boards & Modules
Manufacturer:
https://www.partshnc.com/media/catalog/product/b/r/brd05311.jpg
Write Your Own Review
You're reviewing:Trane BRD05311 Main Control Board 30226254 Version 5.2 Or Newer
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Trane BRD05311 Main Board?

Regularly inspect the board for dust, moisture, or signs of corrosion. Ensure all connectors and wiring are secure. Avoid physical damage and verify firmware or version updates to maintain proper system control and accurate operation.

What are common issues with the Trane BRD05311 Main Board?

  • System malfunctions due to loose connections.
  • Component failure or burnt traces.
  • Firmware or communication errors.
  • Inconsistent signal outputs to components.

Installation Steps

Step 1: Turn off power to the system and disconnect all electrical sources.

Step 2: Remove the old main board carefully, noting all wire connections and positions.

Step 3: Mount the new main board in the same location and secure it with screws.

Step 4: Reconnect all wires according to the labeling or wiring diagram.

Step 5: Double-check connections for tightness and correct placement.

Step 6: Restore power and test the system for proper operation.
