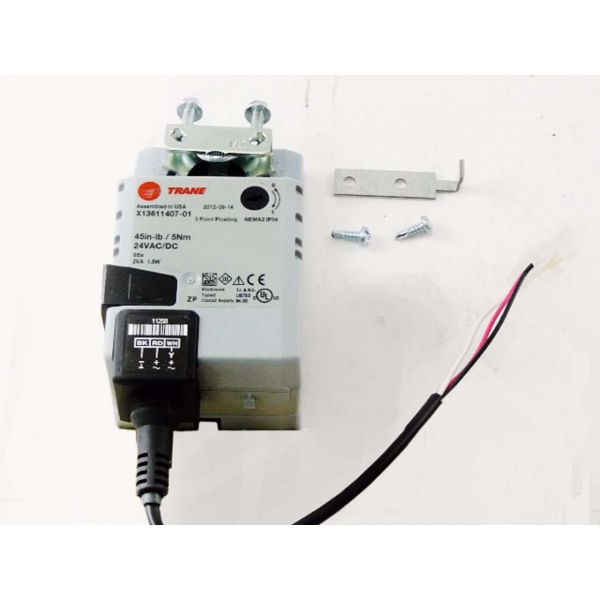

Trane ACT0495 Rotary Damper Actuator

Special Price $216.68 Regular Price $240.52
In stock
SKU
ACT0495
The Trane ACT0495 is an electrically controlled rotary damper actuator that controls airflow in an HVAC system with precision. It does this by moving a plate inside an air duct, called a damper blade. Blade opening and closing controls the volume of air flowing through a predetermined area through the actuator. Variable air volume systems are especially well suited to this fine control, Trane rotary damper actuators, making them easy to integrate into existing ducting. Electronic control systems are, however, seamlessly integrated with them because of their electric functioning, thus increasing the overall efficiency of the system.
Manufacturer:

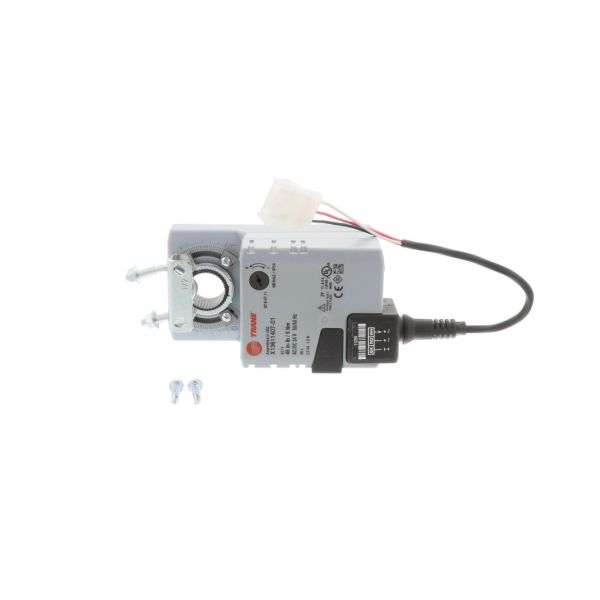

https://www.partshnc.com/media/catalog/product/a/c/act0495.jpg

Specifications

  • Weight: 1.06lbs
  • Type: Electric, Rotary

Product Overview:
Controlling damper movement is essential for directing airflow through HVAC ductwork and air-handling equipment. The Trane ACT0495 Rotary Damper Actuator is an OEM component designed to provide rotational movement for positioning dampers in HVAC systems. It converts the appropriate control input into mechanical rotary motion, allowing the connected damper to adjust its position within an airflow passage. This controlled movement supports airflow regulation and coordinated operation of the damper assembly within the HVAC control system.

Rotary Actuation Mechanism:
Generate angular movement that is transferred to a connected damper shaft or mechanical linkage. When the actuator receives an appropriate control command, its drive mechanism produces rotational motion to change the damper blade angle. The resulting position determines the opening available for airflow through the damper assembly. Operating response and movement range depend on the actuator's control configuration and the mechanical design of the connected assembly.

Airflow Control Coordination:
Damper positioning plays an important role in managing airflow distribution across HVAC ductwork and air-handling systems. The actuator operates as part of a control arrangement that coordinates damper movement with equipment operating requirements. Depending on the system design, this coordination may support ventilation adjustments, airflow routing, or changes between operating modes. The damper's resulting position influences the direction and amount of air passing through the controlled section.

Replacement Guidelines:
Replace the Trane ACT0495 Rotary Damper Actuator when it fails to produce the required rotary movement, responds inconsistently to control commands, or cannot position the connected damper correctly. Replacement may also be necessary if the actuator's drive mechanism or mechanical connection becomes damaged. Have a qualified HVAC technician inspect the actuator and associated damper assembly, perform necessary electrical checks, and handle replacement.

Common Failure Symptoms:

  • Damper fails to move when commanded.
  • Actuator produces inconsistent rotary movement.
  • Damper remains stuck in one position.
  • Actuator stops before reaching the required position.
  • Damper movement becomes irregular or intermittent.

Equipment Compatibility:
The Trane ACT0495 Rotary Damper Actuator is an OEM Trane component intended for applicable HVAC damper control assemblies. Compatibility depends on the equipment model, original actuator configuration, mounting arrangement, mechanical connection, and control requirements. Refer to Trane equipment documentation or approved parts information to confirm the ACT0495 application. Similar appearance or rotary operation alone does not establish interchangeability with other actuators.

Technical Specifications:
Brand: Trane
Part Number: ACT0495
Product Type: Rotary Damper Actuator

Write Your Own Review
You're reviewing:Trane ACT0495 Rotary Damper Actuator
Your Rating
Customer Questions
Can the Trane ACT0495 replace a different rotary damper actuator?

Not automatically. Replacement suitability depends on documented interchangeability and matching mechanical and electrical requirements. A different actuator part number should not be considered interchangeable without manufacturer confirmation.

What mechanical details matter when selecting the ACT0495 actuator?

The mounting arrangement, damper shaft or linkage connection, and required rotational movement are important considerations. These characteristics must correspond to the existing damper assembly for an appropriate mechanical fit.

Is the Trane ACT0495 an OEM rotary damper actuator?

Yes. The Trane ACT0495 is identified as an OEM rotary damper actuator intended for applicable Trane HVAC damper control applications. Confirm the manufacturer's part identification and approved equipment application when ordering.

Can the Trane ACT0495 be used for both opening and closing HVAC dampers?

Rotary damper actuators can position dampers through their designed range of movement. The ACT0495's specific operating direction and control capabilities should be confirmed through Trane documentation.

Does the Trane ACT0495 support automatic damper positioning?

The ACT0495 is designed to provide rotary damper movement in response to an appropriate control input. Its specific automatic positioning capabilities depend on the actuator's control configuration.
