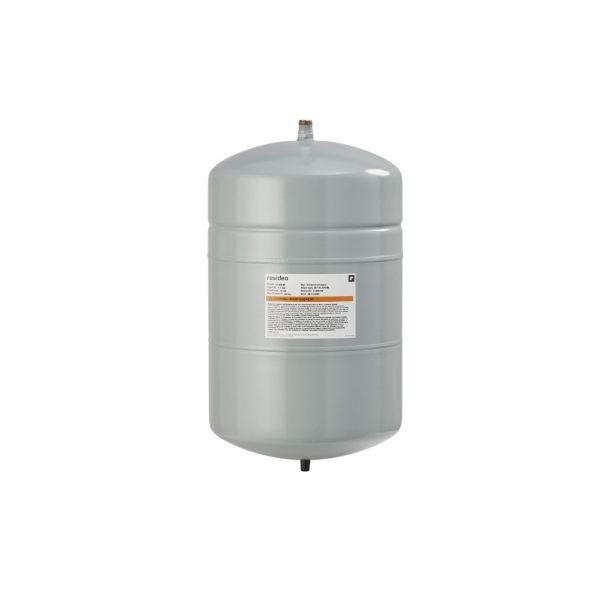

Resideo TK300-60 7.6-Gallon Heating Expansion Tanks 1/2"
Special Price $163.97 Regular Price $188.57
In stock
SKU
TK300-60
The Resideo TK300-60 7.6 gallon Expansion Tank is a critical part of closed heating systems. This tank can help accommodate this fluctuation of pressure which is brought about by the change of water temperature and volume. The steel body and the butyl/EPDM diaphragm are strong enough to manage excess water volume to minimize system damage due to pressure buildup. This tank has the better performance and has a maximum pressure of 100 PSI and it can work well under a temperature of 240°F. It has a small size and is easy to install because it has a 1/2” male NPT thread.
Manufacturer:
Specifications
- Type: Heating Expansion Tanks
- Application: Thermal Expansion
- Compatible With: Closed Heating Systems
- Max Temperature: 240°F
- Max Pressure: 100 PSI
- Connection Size: 1/2"
- Connection Type: Male NPT
- Colour: Gray
- Body Material: Steel
- Diaphragm Material: Butyl/EPDM Compound
- Maximum Acceptance Volume: 7.6 gal|10.2 L
- Height: 23"
- Pre-Charge Pressure: 12 PSI
- Hazmat Information: UN 1956 COMPRESSED GAS, N.O.S.,(air with up to 15% helium), 2.2
