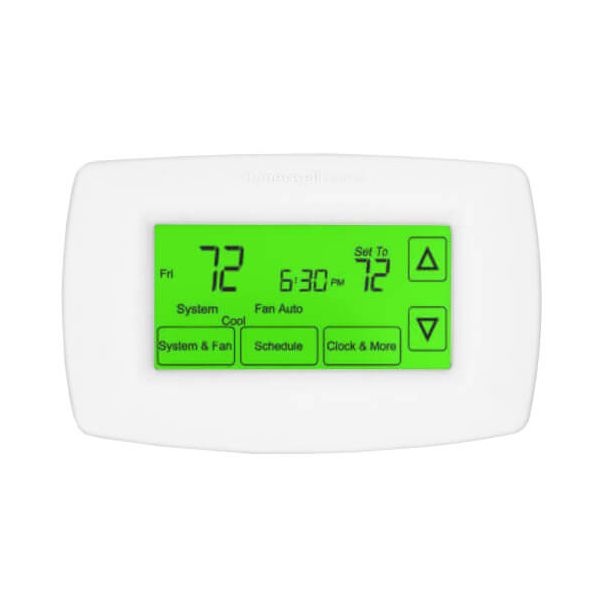

Resideo TH7220U1035 7-Day Touchscreen Programmable Thermostat Automatic/Manual

Special Price $178.42 Regular Price $205.18
In stock
SKU
TH7220U1035
The Resideo TH7220U1035 is a 7-day programmable thermostat for conventional cooling and heating systems including heat pump with auxiliary heat. It also has a touch screen panel through which you can comfortably control and set the comfort that you want in your home. This thermostat may be set to work in either programmable or non-programmable mode depending on your need in your home. It is suitable for use with up to two-stage heating and cooling systems in order to guarantee optimum performance and efficacy. The ability to switch between both cooling and heating is facilitated by the thermostat’s ability to change over automatically as per the set temperature.
Manufacturer:
https://www.partshnc.com/media/catalog/product/t/h/th7220u1035_resideo_partshnc.jpg

Specifications

  • Type: Thermostat
  • Application: Conventional Systems, Heat Pumps with Auxiliary Heat
  • Product Features: Selectable Programmable or Non-Programmable, The L terminal is an input or output
  • Thermostat Type: Programmable
  • Stages: Up to 2 Heat/2 Cool Conventional Systems, Up to 2 Heat/1 Cool Heat Pump Systems
  • Display Type: Touch Screen
  • Display Size: 10 sq in
  • Modes of Operation: Heat, Cool, Auto, Off
  • Program Type: 7-Day Programmable
  • Heat-Cool Changeover: Auto Changeover, 3° temperature difference
  • Number of Batteries: 2
  • Battery Type: Alkaline
  • Color: Premier White
  • Sensor Type: Thermistor
  • Relative Humidity Range: 5% to 90% RH, non-condensing
  • Running Current: 1.0 A
  • Mounting Type: Horizontal Mount
  • Frequency: 50/60 Hz
  • Mounting Location: Wall, Internal
  • Dimensions: 1.38" x 6" x 3.75"
Manufacturer Name: Resideo
Product Number: TH7220U1035
OEM Part Number: TH7220U1035
Product Description: 7-Day Prog Touchscrn Auto/Manl
Weight:0.97lbs/439.98g
