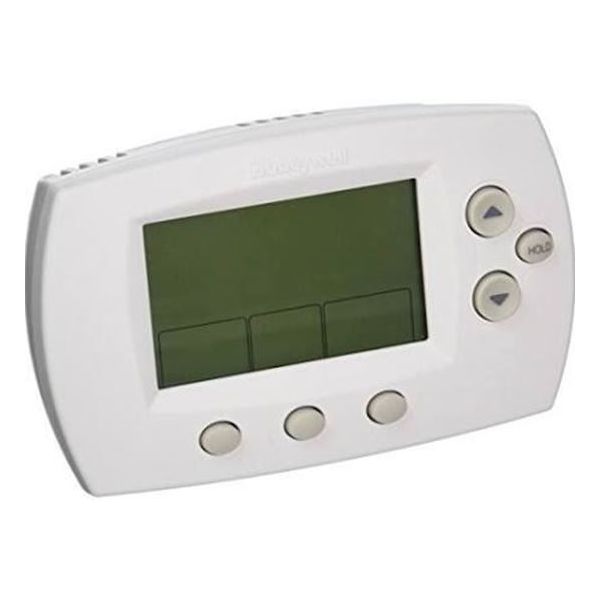

Resideo TH6220D1028 2H/2C 5-1-1 Day Programmable Thermostat Large Backlit
Special Price $214.90 Regular Price $238.54
Out of stock
SKU
TH6220D1028
The Resideo TH6220D1028 is a simple user interface, programmed thermostat for conventional heating and cooling systems with heat pumps with auxiliary heat. Its large and lighted display makes it easy to read from irrespective of the prevailing light conditions. This thermostat offers better temperature control with an accuracy of not more than 1°F, thus giving the better comfort at any given time of the day. Due to the 5-1-1 day programming choices, you can heat and cool according to your convenience and hence, do not have to spend a lot of money on electricity bills. This thermostat has up to two heating and cooling stages which makes it compatible with a range of HVAC systems.
Manufacturer:
Specifications
- Type: Programmable Thermostat
- Application: Conventional Systems, Heat Pumps with Auxiliary Heat
- Stages: Up to 2 Heat/2 Cool Conventional Systems, Up to 2 Heat/1 Cool Heat Pump Systems
- Display Type: LCD Screen
- Display Size: 5.09 sq. in
- Touchscreen: No
- Display Language: English
- Modes of Operation: Heat, Cool, Emergency Heat
- Programmability: 5-1-1 Day
- Heat-Cool Changeover: Auto, Manual
- Number of Batteries: 2
- Power Source: Battery or Hardwired
- Includes: Thermostat, Wall anchors, Screws
- WiFi: No
- Color: Premier White
- Sensor Type: Thermistor
- Series: FocusPRO 6000
- Voltage: 20–30 VAC or 750 mV
- Temperature Setting Range: 40–90°F Heat, 50–99°F Cool
- Operating Relative Humidity Range: 5%-90%
- Electrical Connection Type: Screw Terminals
- Mounting Type: Horizontal Mount
- Frequency: 50/60 Hz
- Stages: 2 Heat/1 Cool Heat Pump, 2 Heat/2 Cool Conventional
- Set point Temperature (Max): Heat- 90°F, Heat- 32°C, Cool- 99°F, Cool- 37°C
- Set point Temperature (Min): Heat- 40°F, Heat- 4.5°C, Cool- 50°F, Cool- 10°C
- Mounting: Horizontal
- Dimensions: 1" x 5.81" x 3.56"
- Display: 5.09 sq. in. Large
