Trane SEN2124 Temperature Sensor 25" For 3/8" Tube
Special Price $30.94 Regular Price $40.22
In stock
SKU
SEN2124

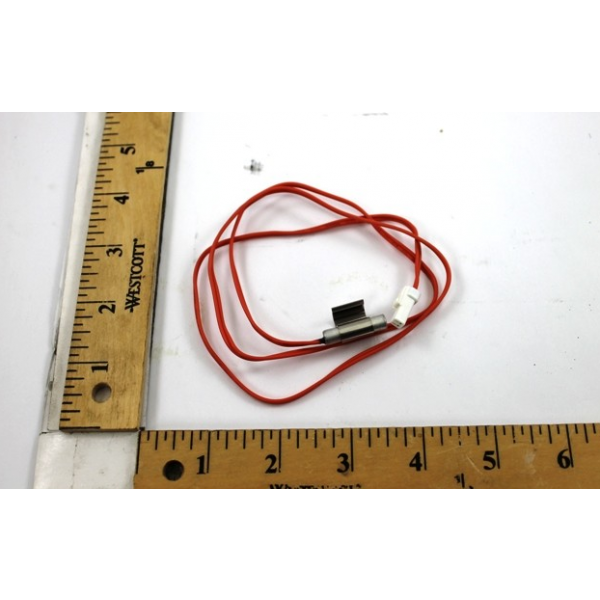

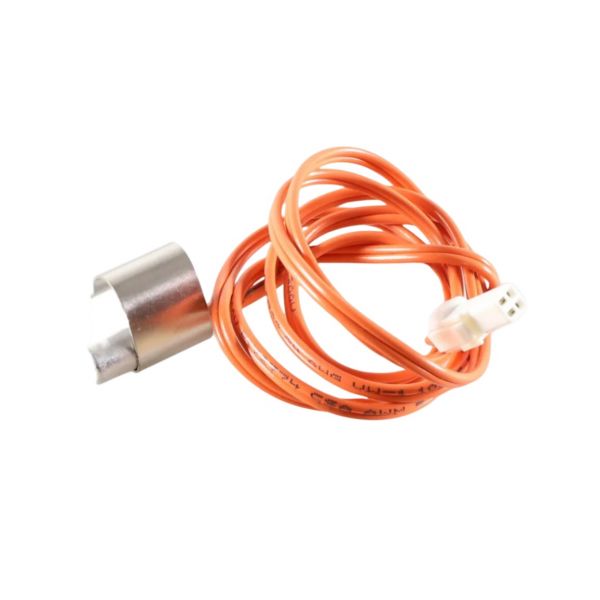

The Trane SEN2124 is a Temperature Sensor used in accurate temperature to control the Trane HVAC systems. This sensor measures 25” in length with a slim thickness of 0.2” and an actual width of 0.4”; the probe is orange in color and coated with copper for added protection. It is designed to be inserted into tubes of 3/8 diameter for measuring temperature of the flowing liquids or gases. The sensor has an electrical connection of single phase, 50/60 Hz and has wire size of 24 AWG with max current 0.1 A. The sensor has a resistance of 9750 ohms within the operating temperature range of 82.4°F to 140°F. Its UL certified construction ensures safety and reliability.
Manufacturer:
Specifications
- Length: 25"
- Accuracy: ±1%
- Height: 0.2"
- Actual Width: 4"
- Color: Orange
- Connection: 24 AWG
- Current Rating: 0.1 A
- Frequency: 50/60Hz
- Material: Copper
- Number of Phase: 1
- Resistance: 9750 Ohms
- Standards: UL
- Temperature Rating: 82.4°F-140°F
- Type: Saturated Line
- Voltage Rating: 24V
- Weight: 0.03lbs
