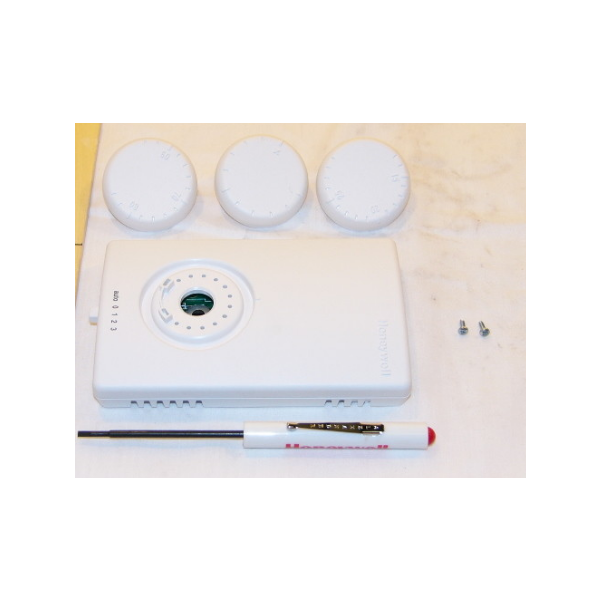

Honeywell TR22-F5 Temperature Sens 55-85F 5Pos Fan Swit

Special Price $126.73 Regular Price $145.74
Out of stock
SKU
TR22-F5
TEMP SENS 55-85F 5POS FAN SWIT
https://www.partshnc.com/media/catalog/product/t/r/tr22-f5.jpg

Product Overview:
Combining room-temperature sensing with fan selection at the wall module, the Honeywell TR22-F5 provides temperature-control input for connected HVAC equipment. Its 55°F–85°F adjustment range allows the user to select a preferred temperature setting, while the 20K-ohm sensor specification defines the resistance characteristic required by the compatible control system. This OEM wall module is intended for applications that require both room-temperature input and manual fan selection.

Room Temperature Sensing:
Through its 20K-ohm sensor, the wall module supplies room-temperature information to the connected HVAC control system. This resistance characteristic is an important selection requirement because the controller must be designed to receive the corresponding sensor input. Matching the sensor characteristic helps the control system interpret the room-temperature signal correctly.

Temperature Adjustment:
At the wall-mounted control point, the module combines temperature adjustment with fan-switch operation. The 55°F–85°F adjustment range provides the available temperature-setting span, while the fan switch allows the user to select the required fan operation through the connected control system. These functions bring room-temperature input and fan selection together at the user interface.

Replacement Guidelines:
Replace the Honeywell TR22-F5 when the existing wall module no longer provides reliable temperature input or fan-switch operation. Before selecting a replacement, verify the 20K-ohm sensor requirement, 55°F–85°F adjustment range, fan-switch arrangement, and connection requirements against the existing control system. A qualified HVAC technician should check the wiring and controller input requirements before the module is connected.

Common Signs of Wear:

  • Room-temperature readings that do not correspond with actual room conditions
  • Temperature adjustment that does not produce the expected control response
  • Fan-switch positions that do not respond consistently
  • Intermittent operation of the wall module
  • Visible damage to the wall module or its control interface

Equipment Compatibility:
The Honeywell TR22-F5 is intended for HVAC control applications requiring a wall module with room-temperature sensing and fan selection. Its OEM design corresponds to systems requiring a 20K-ohm sensor input and a 55°F–85°F temperature adjustment range. Before purchasing, verify the controller's sensor resistance requirement, fan-switch arrangement, wiring connections, and wall-module requirements to confirm that this model matches the intended equipment.

Technical Specifications:
Brand: Honeywell
Model: TR22-F5
Product Type: Wall Module Temperature Sensor with Fan Switch
Temperature Adjustment Range: 55°F–85°F
Sensor Resistance: 20K Ohm

Write Your Own Review
You're reviewing:Honeywell TR22-F5 Temperature Sens 55-85F 5Pos Fan Swit
Your Rating
Customer Questions
What does the Honeywell TR22-F5 wall module do in an HVAC system?

It provides room-temperature sensing and a wall-mounted fan selection interface for a compatible HVAC control system.

How does the TR22-F5's 20K-ohm sensor work with an HVAC controller?

The sensor provides room-temperature input to the connected controller through its 20K-ohm resistance characteristic. The controller must support this resistance type to interpret the temperature signal correctly.

How does the 55°F–85°F adjustment range affect room-temperature control?

It provides the temperature-setting range available through the wall module for the connected control system.

What should be checked before purchasing the TR22-F5?

Check the controller's required sensor resistance, fan-switch arrangement, wiring connections, and wall-module requirements to confirm compatibility.

What can cause the fan switch on a wall module to respond inconsistently?

Possible causes include wear or damage within the switch, loose wiring, or an issue with the connected control system. The module and its connections should be checked by a qualified HVAC technician.
