main product photo

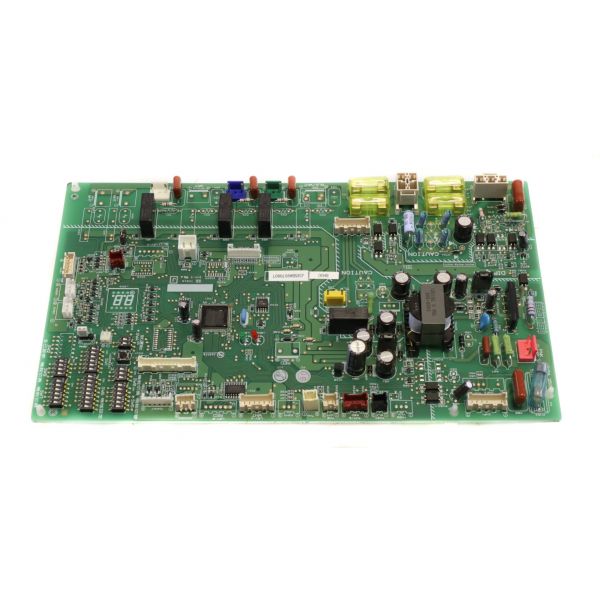

Mitsubishi Electric T7WF22315 Main Controller Board

Rating:
5 5 4
4  Reviews Add Your Review
Special Price $370.27 Regular Price $411.00
In stock
SKU
T7WF22315
The Mitsubishi Electric T7WF22315 Main Controller Board is a significant part of HVAC systems that supervises and coordinates several operational processes accurately. It also acts as the main control for all Mitsubishi Electric HVAC equipment including heat pumps and air conditioners. This makes it possible to operate optimally and optimally, in terms of energy and conservation of the right levels of comfort in the indoors. The Main Controller Board that is fitted in Mitsubishi Electric HVAC systems enhances the systems’ performance in terms of control and monitoring.
Add to Wish List
HVAC Controls & Electrical, Control Boards & Modules
Manufacturer:
https://www.partshnc.com/media/catalog/product/T/7/T7WF22315_MitsubishiElectric_partshnc.jpg

Specifications

  • Weight:0.95lbs
  • Length: 6-3/8"
  • Width: 10-5/8"
  • Material: FR4 fire-resistant fiberglass
  • Type: Main Controller Board
Manufacturer Name: Mitsubishi Electric
Product Number: T7WF22315
OEM Part Number: T7WF22315
Product Description: Main Controller Board
Weight:0.95lbs/430.91g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews 4
Write Your Own Review
You're reviewing:Mitsubishi Electric T7WF22315 Main Controller Board
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Mitsubishi Electric T7WF22315 Main Controller Board?

Regularly inspect the board for dust, corrosion, or loose connections. Clean gently with compressed air or an anti-static brush to prevent short circuits. Ensure all connectors are seated properly. Power down the system before handling to avoid electric shock and component damage.

What are common issues with the Mitsubishi Electric T7WF22315 Main Controller Board?

  • Board failing to power on or respond.
  • Erratic system behavior or errors.
  • Loose or corroded wiring connections.
  • Overheating of components affecting operation.

Installation Steps

Step1: Turn off power to the unit and disconnect electrical supply.

Step2: Remove access panels to reach the existing controller board.

Step3: Disconnect all wiring harnesses and mounting screws from the old board.

Step4: Position the new controller board and secure it with screws without over‑tightening.

Step5: Reconnect all wiring harnesses per the wiring diagram.

Step6: Restore power and test system functions.

Step7: Follow electrical safety precautions and manufacturer guidelines during installation.
