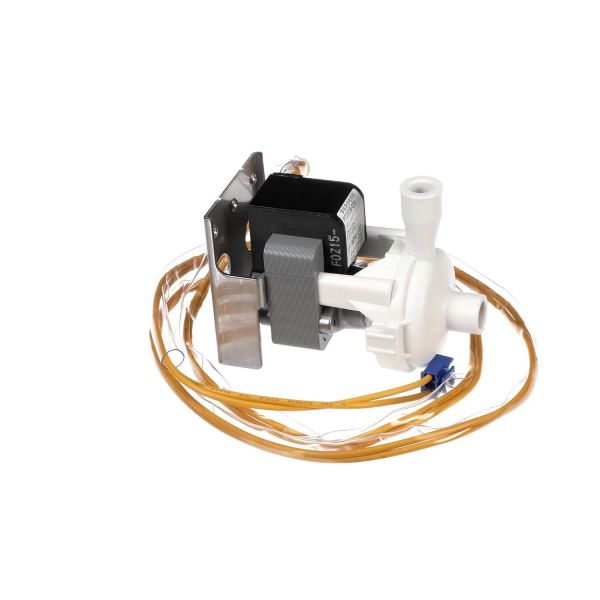

Mitsubishi Electric T7WE14355 Condensate Pump
Specifications
- Weight: 1.38 lbs
- Type: Condensate Pump
- Voltage: 230 V
- Material: Plastic
Loyalty ProgramPump Operation:
A condensate drain pump transfers collected water from the indoor unit drain pan through the connected drainage pathway. When condensate reaches the pump, the pump moves the water toward the drain line for discharge. This operating principle separates active water transfer from gravity-based drainage within Integrates with air conditioning applications.
Condensate Management:
During cooling operation, the drain pump forms part of the indoor unit's condensate management assembly. Moisture produced through condensation at the evaporator coil collects in the drain pan, after which the pump transfers the collected water toward the drain line. This water-removal process operates separately from refrigerant circulation within the air conditioning system.
Replacement Guidelines:
Replacement of the Mitsubishi Electric T7WE14355 Drain Pump is necessary when visible damage, wear, deterioration, or other physical conditions affect the pump's intended drainage role. Inspect the drain pump and related connection areas for conditions that could affect proper drainage within the equipment. Replace the component when it can no longer maintain its intended drainage operation within the equipment assembly.
Common Signs of Wear:
Equipment Compatibility:
The Mitsubishi Electric T7WE14355 Drain Pump is specified to integrate with Mitsubishi Electric indoor air conditioning units requiring pumped condensate drainage. Compatibility should be confirmed using the equipment model number, manufacturer documentation, and applicable part information before purchase.
Technical Specifications:
Brand: Mitsubishi Electric
Part Number: T7WE14355
Product Type: Drain Pump
Equipment Type: Air Conditioning Equipment
Step1: Turn off power to the HVAC unit and verify the system is fully de-energized.
Step2: Disconnect and remove the existing condensate pump from the drain line and electrical connections.
Step3: Position the new pump level near the drain pan and connect the inlet and outlet tubing securely.
Step4: Wire the pump to the designated power and safety switch terminals according to the diagram.
Step5: Restore power, check for leaks, and test pump operation for proper condensate discharge.
