main product photo

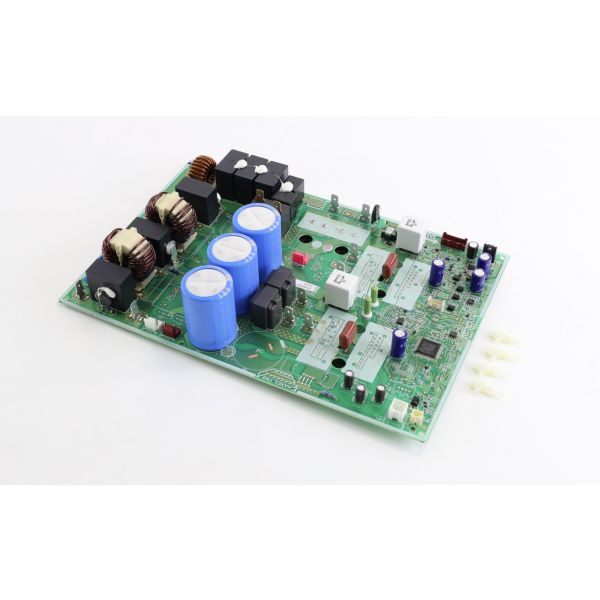

Mitsubishi Electric T7WB40323 Power Circuit Board

Be the first to review this product
Special Price $583.68 Regular Price $647.88
In stock
SKU
T7WB40323
The Mitsubishi Electric T7WB40323 Power Circuit Board for the correct functioning of air conditioning systems. In a way that this power circuit board is responsible for electrical connections and control of some vital processes in order to assure stable work in various heating and cooling applications. Suitable for single and multifamily residences, as well as commercial applications, for use with heat pump and ductless mini-split systems, with voltage 208/230 VAC, which is why it is an essential part of maintaining optimal performance of the system. This circuit board reduces downtime, enhances the power usage efficiency, and enhances the system reliability as it handles power supply and control signals.
Add to Wish List
Circuit Boards, HVAC Controls & Electrical
Manufacturer:
https://www.partshnc.com/media/catalog/product/T/7/T7WB40323_MitsubishiElectric_partshnc.jpg

Specifications

  • Weight: 2.41 lbs
  • Type: Power Circuit Board
  • Voltage Rating: 208/230 VAC
Manufacturer Name: Mitsubishi Electric
Product Number: T7WB40323
OEM Part Number: T7WB40323
Product Description: Power Circuit Board
Weight:2.41lbs/1093.16g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Mitsubishi Electric T7WB40323 Power Circuit Board
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Mitsubishi Electric T7WB40323 Power Circuit Board?

Regularly inspect the circuit board for dust buildup, loose connections, and heat damage. Keep it clean using dry air and ensure proper ventilation in the enclosure. Check solder joints and connectors periodically to maintain stable performance and prevent electrical faults.

What are common issues with the Mitsubishi Electric T7WB40323 Power Circuit Board?

  • Overheating due to poor ventilation.
  • Burnt components from voltage spikes.
  • Intermittent power loss or failure.
  • Communication errors with control system.
  • Loose or damaged solder joints.
  • Short circuits caused by moisture ingress.

Installation Steps

Step 1: Turn off all electrical power and confirm complete voltage isolation before servicing.

Step 2: Remove access panel and label all wiring harnesses connected to the existing power circuit board.

Step 3: Carefully disconnect all connectors and remove the mounting screws holding the old board.

Step 4: Install the new power circuit board, ensuring correct alignment and secure mounting in the enclosure.

Step 5: Reconnect all wiring exactly as labeled, verifying tight and correct terminal seating.

Step 6: Restore power and run system to confirm proper compressor, fan, and inverter operation.
