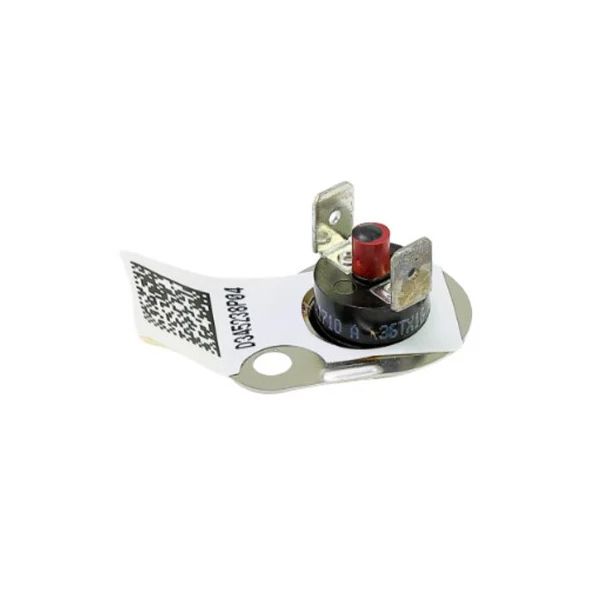

Trane SWT3968 Manual Reset Rollout Switch L190°F
Special Price $66.68 Regular Price $76.68
In stock
SKU
SWT3968
The Trane SWT3968 is a Manual Reset Rollout Switch L190°F is one of the safety devices used in HVAC systems to avoid high temperatures and risks. With a size of 1-inch length, 1.35-inch width and 0.83-inch height. It operates w, with an open temperature of 190°F and a reset temperature of 100°F manual or -31°F auto. It also has a switch tolerance of ±8°F open. Made from fine materials including unplated brass, tin-plated brass, and nickel-plated steel. With its SPST contact arrangement and the currently rated 35A, this product is used in a wide range of HVAC systems. It has auto-reset and manual-reset functions which can be easily operated and convenient for operations.
Manufacturer:
Specifications
- Length: 1"
- Width: 1.35"
- Height: 0.83"
- Features: Fixed Temperature Thermostat & Non-Adjustable
- Locked Rotor Current: 34.8A
- Open Temperature: 190°F
- Reset Temperature: 100°F Manual -31°F Auto
- Switch Tolerance: ±8°F Open
- Terminal Material: Unplated Brass
- Tin Plated Brass and Nickel Plated Steel
- Type: Flame Rollout
- Contact Arrangement: SPST
- Current Rating: 35A
- Enclosure Type: Enclosed Disc, Stainless Steel
- Function: Auto Reset and Manual Reset
- Number of Poles: 1
- Reset Button Color: Red
- Temperature Rating: -31°F to 190°F
- Terminal Type: Quick Connect
- Voltage: 24 VAC
- Weight: 0.08lb
