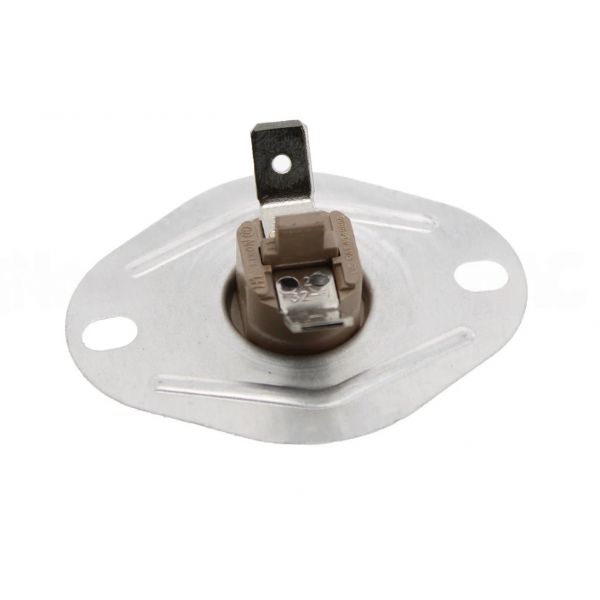

Trane SWT0768 280°F Limit Switch
Special Price $12.72 Regular Price $16.54
Out of stock
SKU
SWT0768

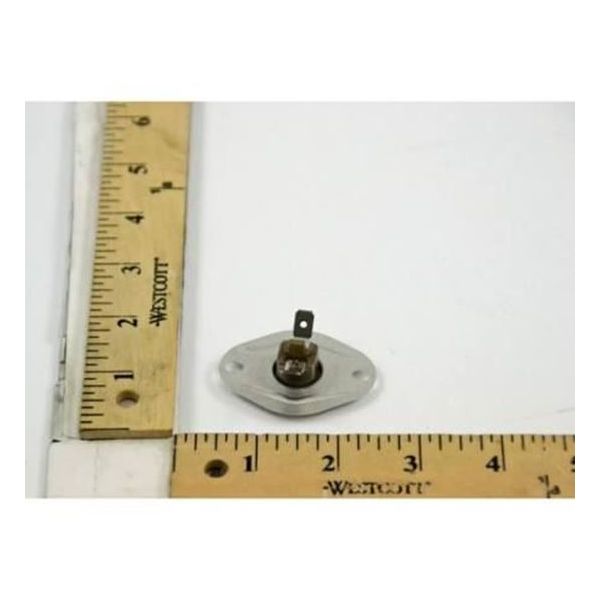

The Trane SWT0768 is an essential safety equipment meant for use in Trane HVAC systems. This miniature switch is 2 inches long, 0.55 inches wide, and 2 inches high and is essential in preventing overheating. It is a closed switch that means it lets the current pass through it until a certain temperature is achieved. In this case, this is set to operate at 280°F and break the electrical circuit to the compressor to avoid any risk of damage. You can think of it as a safety mechanism for your Trane system. In case the temperature rises to the dangerous levels, this turns off the compressor to avoid damaging the equipment.
Manufacturer:
Specifications
- Height: 2"
- Length: 0.55"
- Width: 1.5"
- Weight: 0.1lbs
- Contact Configuration: Normally Closed
- Current Rating: 25A
- Current Rating (FLA): 5A
- Function: Manual Reset
- Locked Rotor Current: 25A
- Open Temperature: 280°F
- Release Force: 22.2 N
- Standards: UL and CSA Recognized
- Switch Tolerance: ±12 Open
- Temperature: 280°F
- Terminal Type: Quick Connect
- Type: Manual Reset
- Voltage: 120V
- Weight: 0.03lbs
