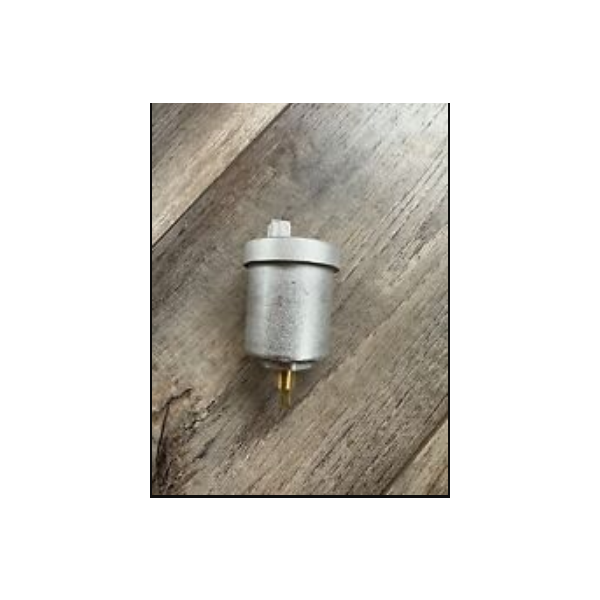

Trane SWT1937 SPDT High Pressure Switch 270 PSI Open 230 PSI Close
Special Price $52.78 Regular Price $60.70
In stock
SKU
SWT1937
The Trane SWT1937 SPDT High-Pressure Switch is an essentialpart of refrigeration and air conditioning circuits as it is used to measure and regulate high pressure. This switch has dimensions of 4.5” length, 22.6mm in diameter, and 49.4mm in length the construction is a stainless steel disc switch. It functions at 270 PSI to open and 230 PSI to close to guard the system. The current rating is 8A and the voltage is 250VAC with features of automatic and manual reset. It has an IP65 enclosure which makes it robust and safe to use; it also meets CE, TUV, UL, and VDE standards.
Manufacturer:
Specifications
- Length: 4.5"
- Current Rating: 8A
- Features: Automatic/Manual Reset
- Function: High
- Mounting Type: Direct
- Number of Poles: 1
- Pressure Rating: -0.5 to 45 Bar Operating, 300 Bar Burst
- Standards: CE,TUV,UL,VDE
- Terminal Type: Lead Wire
- Voltage: 250 VAC
- Actual Height: 1.95"
- Contact Configuration: SPDT
- Enclosure Type: IP65
- For Use With: Refrigeration and Air Conditioning Systems
- Material: Stainless Steel Disc
- Size: 22.6 mm Diameter 49.4 mm Length
- Temperature Rating: -22°F to 185°F
- Type: Cartridge Control, High, Small Disc
- Weight: 0.05lb
