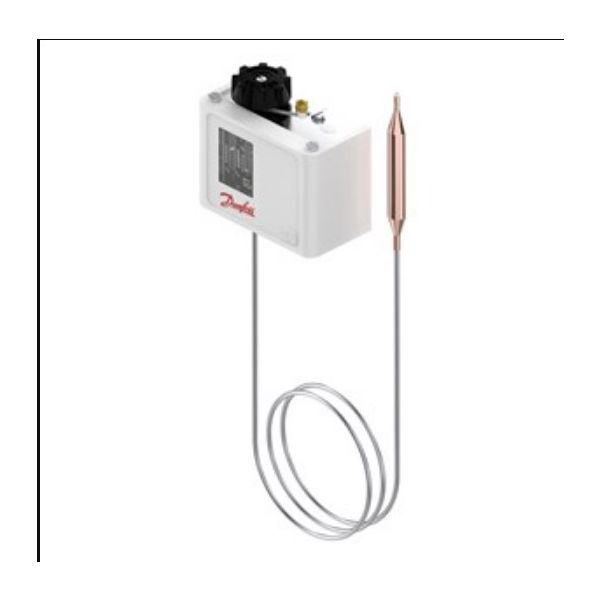

Danfoss 060L112566 SPDT Temperature Control Switch 176°F-302°F

Special Price $139.16 Regular Price $160.03
In stock
SKU
060L112566
The Danfoss 060L112566 SPDT Temperature Control is available in the market in a universal, reliable form with accurate temperature control for use in almost all types of HVAC systems. It possesses the SPDT contact function, due to which it can automatically switch between the cooling mode and heating mode operation. This makes it highly suitable for high-temperature applications because this particular control can work under an operating temperature range from 176°F to 302°F. The accuracy in heating and cooling applications is achieved. An auto-reset feature in temperature control keeps stable temperatures without needing any manual adjustment. KP81 type designation provides compatibility with different systems. Hence, it ensures reliable performance as well as durability.

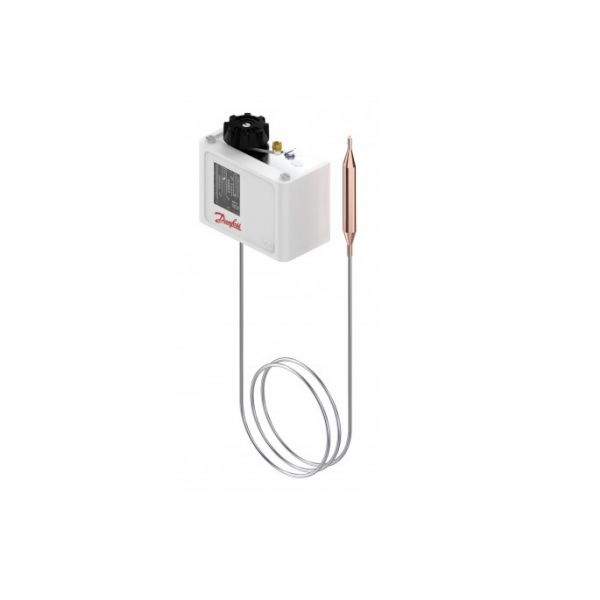

https://www.partshnc.com/media/catalog/product/0/6/060l112566.jpg

Specifications

  • Weight:0.97 lbs
  • Type: Temperature Control
  • Contact function: SPDT
  • Type: KP81
  • Reset function: Auto
  • Volume: 1.463 Liter
  • Temperature Range: 176°F-302°F

Product Overview:
Industrial temperature regulation requires reliable switches to safeguard equipment and manage thermal processes. The Danfoss 060L112566 SPDT Temperature Control Switch 176°F-302°F is a genuine OEM thermostat engineered for monitoring and regulation. It uses a single-pole double-throw contact mechanism to actuate heating, cooling, or alarm circuits when temperatures reach targeted limits within its 176°F to 302°F band.

Operational Principles:
This switch operates via fluid expansion inside a capillary bulb. Thermal changes between 176°F and 302°F shift internal bellows to trip the SPDT contact, changing circuit status automatically to manage connected loads without digital logic.

Replacement Guidelines:
Replace Danfoss 060L112566 when the switch exhibits contact welding, capillary rupture, or inaccurate trip points. Isolate electrical power and line pressure before replacing components. Installation should be performed by a qualified technician to ensure safe wiring and bulb placement.

Common Failure Symptoms:

  • Equipment fails to start or shut down when temperatures cross set threshold levels.
  • Electrical contacts fail to close or remain stuck open during thermal changes.
  • Physical damage or kink in the capillary tube leads to loss of internal fluid charge.
  • False or erratically timed switching occurs due to worn internal snap-action mechanisms.

Equipment Compatibility:
The Danfoss 060L112566 temperature control switch is designed for industrial HVAC, boiler, and fluid heating systems requiring SPDT control across the 176°F to 302°F operating range. Confirm part number 060L112566 in your system technical manual prior to installation.

Technical Specifications:
Brand: Danfoss
Part Number: 060L112566
Product Type: SPDT Temperature Control Switch
OEM Status: Genuine OEM
Temperature Range: 176°F to 302°F
Switch Type: SPDT (Single Pole Double Throw)

Write Your Own Review
You're reviewing:Danfoss 060L112566 SPDT Temperature Control Switch 176°F-302°F
Your Rating
Customer Questions
What temperature range does the Danfoss 060L112566 control switch support?

The switch operates across a temperature control range of 176°F to 302°F (80°C to 150°C), making it suitable for high-temperature HVAC, boiler, and industrial process applications.

How does the SPDT mechanism function in the Danfoss 060L112566?

The SPDT contacts toggle between two circuits at set temperatures, allowing the unit to deactivate heating while simultaneously signaling an alarm.

Is the Danfoss 060L112566 a genuine OEM replacement component?

Yes, this switch is a genuine OEM component manufactured by Danfoss to meet original equipment standards for precise thermal regulation and industrial safety.

What safety precautions are required during replacement?

Disconnect line power and relieve system pressure before service; installation should be completed by a qualified technician.
