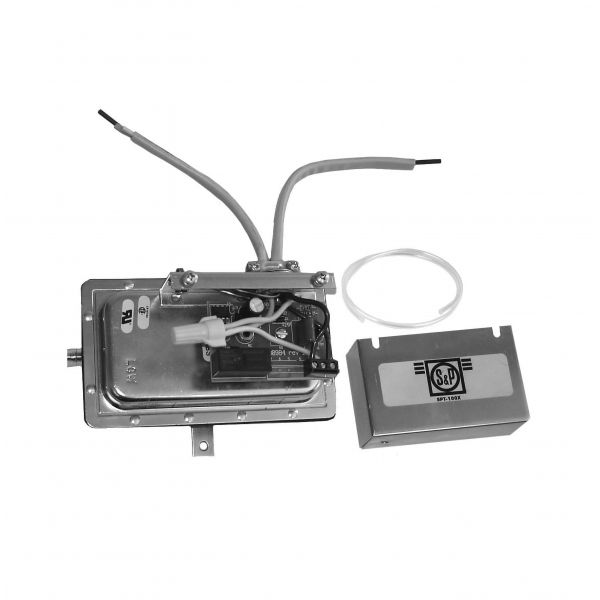

main product photo

Soler & Palau SPT-100X Pressure Switch FS-751-312

Rating:
5 5 1
1  Review Add Your Review
Special Price $126.14 Regular Price $145.06
In stock
SKU
SPT-100X
The Soler & Palau SPT-100X Pressure Switch FS-751-312 monitors differential air pressure to verify proper airflow across ventilation ducts and exhaust fans. Mounted inside fan housings or air-handling cabinets in HVAC systems, the switch connects via tubing to high- and low-pressure sensing points. When fan operation generates sufficient static pressure difference across the diaphragm, the internal electrical contacts close to complete the safety circuit. Verifying draft velocity or supply airflow permits continued burner or fan operation, coordinates equipment staging, and supports safe ventilation sequence control across active operating cycles.
Add to Wish List
HVAC Controls & Electrical, Switches, Pressure Switches
Manufacturer:
https://www.partshnc.com/media/catalog/product/s/p/spt-100x.jpg
Write Your Own Review
You're reviewing:Soler & Palau SPT-100X Pressure Switch FS-751-312
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the SOLER & PALAU SPT-100X Duct Pressure Switch?

Regularly inspect the switch and tubing for dust, debris, or damage. Test the delay timer and ensure proper electrical connections. Keeping the switch clean and calibrated ensures accurate pressure detection and accurate HVAC operation.

What are common issues with the SOLER & PALAU SPT-100X Duct Pressure Switch?

  • Inaccurate or fluctuating pressure readings.
  • Delay timer malfunction.
  • Blocked or damaged tubing.
  • Electrical connection failures.

Installation Steps

Step 1: Turn off power to the HVAC system before installation.

Step 2: Mount the switch securely on the duct using screws, ensuring correct airflow orientation.

Step 3: Connect the pressure tubing from the duct to the switch ports.

Step 4: Wire the electrical terminals according to the wiring diagram.

Step 5: Adjust the delay timer as needed for system requirements.

Step 6: Restore power and test the switch operation.
