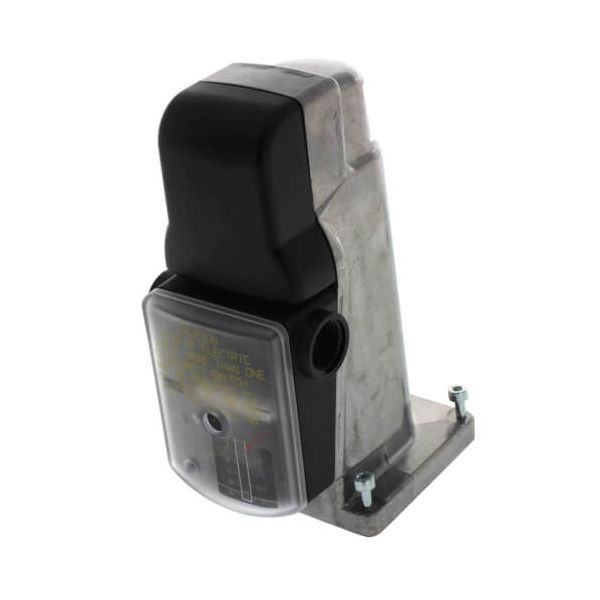

The Siemens Combustion SKP15.011U1 Gas Valve Actuator is designed for the HVAC burner systems to control the gas supply with on/off, single-stage durability. It has a 120V signal to open or close the gas valve depending on the control signals that are received. Using a POC mechanism indicates that the valve is closed before ignition, increasing operating safety. Used for industrial and commercial applications for gas-fired equipment, it offers effective combustion control. This actuator enhances the system's durability, conused energy, lowers emissions and decreases maintenance with durable, high durability in severe HVAC System conditions.
The SKP15.011U1 from Siemens is a highly efficient electro-hydraulic gas actuator, meticulously crafted for seamless integration with Siemens VG series gas valves. This compact device plays a pivotal role in regulating gas flow to the burner by precisely responding to electrical signals transmitted by the burner control unit. Engineered with precision, the SKP15.011U1 ensures the accurate opening and closing of the valve, enhancing the overall combustion process. Its compact design not only saves space but also ensures reliable performance. Whether it's for industrial applications or commercial heating systems, this SKP15.011U1 Siemens Combustion Actuator stands out for its reliability, making it an indispensable component in achieving optimal combustion control.
Key features:
Controls gas flow: Opens and closes a compatible VG series gas valve based on electrical signals from the burner control unit.
Safety shut-off: Closes the valve quickly in case of power loss, preventing gas leaks and ensuring safety.
Proof of Closure (POC) switch: Confirms the valve is fully closed for enhanced control and safety.
Durable construction: Built for reliable operation in harsh industrial environments.
UL listed, FM approved, CSA certified: Meets relevant safety standards for various applications
110/120 VAC operating voltage: Compatible with standard power supplies.
Visual position indicator: Shows valve status (open/closed) directly on the actuator.
Low power consumption: Uses minimal power even when activated.
Modular design: Allows for easy installation and field wiring with 360-degree actuator rotation.
NEMA 4 enclosure: Provides additional protection against moisture and dust (available separately).
Signs of faulty Siemens Combustion Acutator
Gas flow issues:
Burner not igniting: If the burner fails to ignite despite receiving all other necessary signals, the gas actuator might not be opening the valve properly.
Incomplete combustion: Sooty flames or excessive smoke could indicate the valve isn't fully opening, leading to insufficient gas flow and incomplete combustion.
Unstable flame: Erratic flame behavior, flickering, or frequent extinguishment could be caused by the valve not opening or closing smoothly.
Gas leaks: Although rare due to safety features, a persistent gas smell around the burner could indicate a faulty valve seal or internal leak within the actuator.
Valve operation issues:
Valve not opening or closing fully: Listen for unusual sounds like grinding or sticking during valve operation, which might indicate internal mechanical issues.
Visual confirmation: Check the valve position indicator to ensure it accurately reflects the actual valve state (open/closed).
Proof of Closure (POC) switch malfunction: If the POC switch fails to activate when the valve is closed, it could indicate a problem with the switch itself or the valve closure mechanism.
Electrical issues:
Burner control unit error codes: Some burner control units might display specific error codes related to valve communication or operation. Consult the user manual for their meaning and troubleshooting advice.
Blown fuses or tripped breakers: If the gas actuator is causing electrical issues, it could be due to internal faults or wiring problems.
