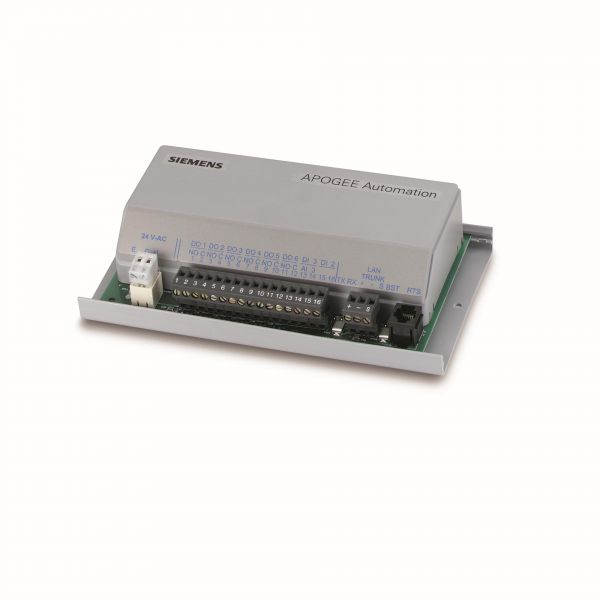

Siemens DDC 540-865EN TEC Variable Air Volume W/0-10V AO Heat Modulation & Co2

Rating:
5 5 1
1  Review Add Your Review
Special Price $1,004.04 Regular Price $1,114.49
In stock
SKU
540-865EN
The Siemens DDC 540-865EN TEC Variable Air Volume AO Heat Modulation is a building automation component that is used to control the amount of air and heat that is delivered to the HVAC systems. It is a direct digital controller with a 0-10 V analogue, output for heat modulation and incorporates CO₂ sensing to regulate the rate of ventilation based on the space conditions. It is applied in variable air volume boxes, air handlers, and zone control applications where the coordination of airflow and thermal control is required. This control section processes sensor inputs and transmits signals.
Add to Wish List
Manufacturer:
https://www.partshnc.com/media/catalog/product/5/4/540-865en.jpg
Write Your Own Review
You're reviewing:Siemens DDC 540-865EN TEC Variable Air Volume W/0-10V AO Heat Modulation & Co2
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Siemens DDC 540-865EN Variable Air Volume?

Regularly inspect the VAV unit for dust, debris, and loose wiring. Check sensors and actuators for proper operation and calibration. Clean air pathways and verify control signals to maintain accurate airflow and CO2 modulation. Ensure safety when handling electrical components.

What are common issues with the Siemens DDC 540-865EN Variable Air Volume?

  • Inaccurate airflow or temperature control.
  • Faulty temperature sensor readings.
  • Actuator or damper sticking or failing to modulate.
  • Intermittent analog output signal problems.

Installation Steps

Step 1: Turn off power to the HVAC system before starting installation.

Step 2: Remove the access panel to access the existing VAV controller.

Step 3: Disconnect all wiring and remove mounting screws from the old controller.

Step 4: Install the new TEC VAV controller, aligning it with the mounting points.

Step 5: Reconnect all wiring and sensors, following the wiring diagram.

Step 6: Replace the access panel, restore power, and test airflow, heating modulation and controls.
