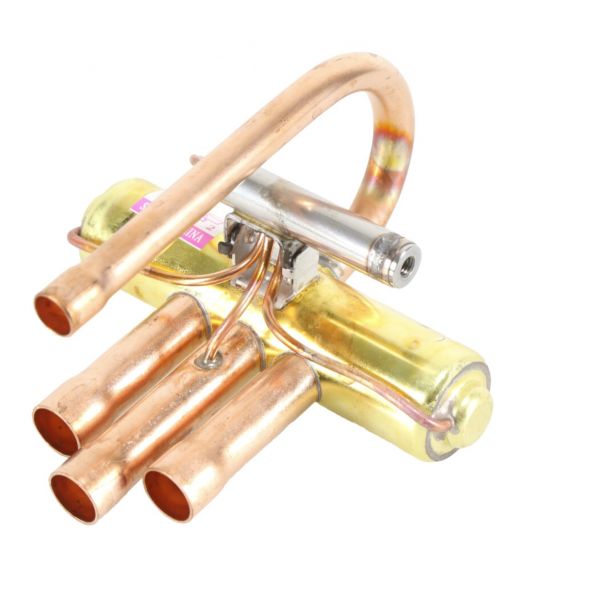

Sanhua International SHF(L)-7H-34U 4-Way Reversing Valve 3/8" Tube, ESC 1/2"

Special Price $41.94 Regular Price $54.53
In stock
SKU
SHF(L)-7H-34U
The Sanhua International SHF(L)-7H-34U 4-Way Reversing Valve is an essential component of the HVAC systems since it changes the direction of the refrigerant flow to switch between heating and cooling modes. With the tube connection of 3/8 inch and the ESC of 1/2 inch, it allows for compatibility with different systems. This valve is mostly used in heat pump, air conditioning and refrigeration equipment. They include better energy consumption, better temperatures, and better systems. It therefore enhances the flexibility of HVAC equipment so as to be used in both residential and commercial buildings.
https://www.partshnc.com/media/catalog/product/s/h/shf-l-7h-34u.jpg

Specifications

  • Type: Reversing Valve
  • Valve Type: 4-Way
  • Connection Sizes: 3/8" Tube
  • Electrical Connector Size: ESC 1/2"

PRODUCT OVERVIEW:
Reversing the flow direction of compressed refrigerant allows a heat pump system to switch seamlessly between heating and cooling cycles. The Sanhua International SHF(L)-7H-34U 4-Way Reversing Valve is an OEM flow control component engineered by Sanhua International. The integrated internal slide block assembly alters the hydraulic pathways to redirect gas distribution.

REFRIGERANT FLOW CONTROL:
The valve operates via a pilot solenoid coil that shifts an internal slide mechanism left or right using system pressure differentials. This physical movement redirects high-pressure gas from the compressor either to the outdoor coil for cooling or to the indoor coil for heating. The system defaults to its primary configuration when the pilot coil is de-energized.

REPLACEMENT GUIDELINES:
Replace Sanhua International SHF(L)-7H-34U reversing valve when diagnosing heat pumps stuck in one operational mode, experiencing internal refrigerant bypassing, or suffering from damaged pilot capillary tubes. Prior to purchase, confirm tube connection sizes, port layout, and physical orientation relative to existing refrigerant lines.

COMMON FAILURE SYMPTOMS:

  • Heat pump stuck in one operational mode due to a physically jammed internal slide mechanism.
  • Thermal blow-by where hot gas leaks directly into the suction line, dropping system capacity.
  • An audible continuous hissing sound indicating internal pressure bypassing the valve seat.
  • Electrical failure or burnout within the attached pilot solenoid actuation coil.

EQUIPMENT COMPATIBILITY:
Compatible with residential and light commercial heat pump systems requiring a Sanhua SHF(L)-7H-34U 4-way reversing valve with 3/8-inch tube and 1/2-inch ESC connections. Verify equipment model numbers, refrigerant type, and original part specifications prior to ordering.

TECHNICAL SPECIFICATIONS:
Product Identification:
Brand: Sanhua International
Part Number: SHF(L)-7H-34U
Product Type: 4-Way Reversing Valve
Physical Specifications:
Tube Connection Size: 3/8 Inch
Equalized Suction Connection (ESC): 1/2 Inch
Valve Operation & Control:
Valve Type: 4-Way Reversing Valve

Write Your Own Review
You're reviewing:Sanhua International SHF(L)-7H-34U 4-Way Reversing Valve 3/8" Tube, ESC 1/2"
Your Rating
Customer Questions
What causes an internal slide mechanism to stick in this component?

Contaminants, burnt oil from a compressor burnout, or excessive heat applied directly to the body during soldering can warp the internal components.

How does thermal blow-by impact heat pump performance?

It allows hot discharge gas to bleed directly back into the low-pressure suction line, severely degrading both cooling and heating efficiencies.

Can this valve be mounted in any physical orientation?

No, it must be positioned according to manufacturer specifications to ensure that gravity or oil accumulation does not disrupt pilot operation.

Is the electrical pilot solenoid coil included with this valve body assembly?

Reversing valve bodies are typically sold as bare mechanical units, requiring the matching voltage solenoid coil to be sourced or transferred separately
