Trane SHF-H295720751-RK 6 Ton 24V Reversing Valve

Special Price $273.03 Regular Price $303.06
In stock
SKU
SHF-H295720751-RK

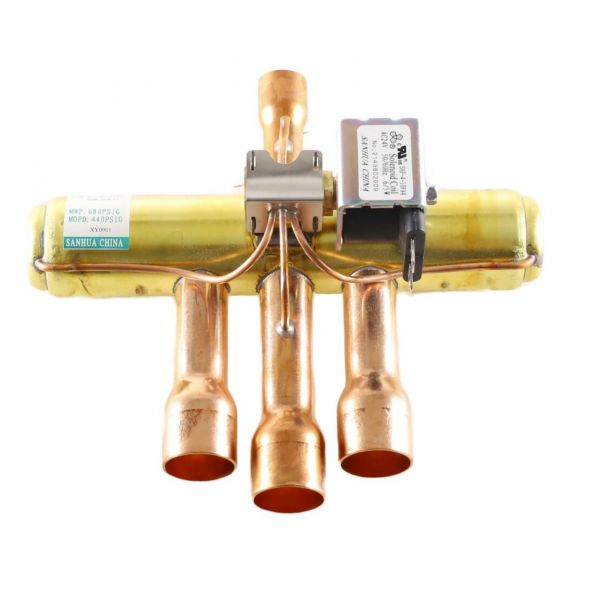

The Trane SHF-H295720751-RK Reversing Valve – a dependable part for all seasons and comfortable living. This valve is used in Trane HVAC systems which are of 6-ton capacity. This is a brass valve that is robust and comes with an operating power supply of 24V AC/DC and ODF connection types. This way of operation makes the SHF-H295720751-RK to provide efficient heating during the winter season and circulation of cool air during the summer season. The construction of this pipe is strong and can work efficiently for a long time with a maximum working pressure of 4.5 MPa. The Trane SHF-H295720751-RK Reversing Valve is designed to be installed in compatible Trane HVAC systems to give the ability to control the climate in home or office effectively.
https://www.partshnc.com/media/catalog/product/s/h/shf-h295720751-rk.jpg

Specifications

  • Voltage: 24V
  • Capacity: 6Ton
  • Weight: 2.76lbs
  • Inlet Size: 5/8"
  • Material: Brass
  • Outlet Size: 7/8"
  • Connection Type: ODF
  • Working Pressure: 4.5 Mpa Max
Manufacturer Name: Trane
Product Number: SHF-H295720751-RK
OEM Part Number: SHF-H295720751-RK
Product Description: 6 Ton 24V Reversing Valve
Weight:2.76lbs/1251.91g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Write Your Own Review
You're reviewing:Trane SHF-H295720751-RK 6 Ton 24V Reversing Valve
Your Rating
Customer Questions
What maintenance is required for the Trane SHF-H295720751-RK Reversing Valve?

Inspect the reversing valve periodically for refrigerant oil leakage, corrosion, or signs of sticking during mode change between heating and cooling. Ensure the solenoid coil receives proper voltage and that electrical connections are tight and free from oxidation. Check refrigerant line brazed joints for leaks and verify smooth switching during system operation.

What are common issues with the Trane SHF-H295720751-RK Reversing Valve?

  • Valve stuck in heating or cooling mode due to internal wear.
  • Coil failure causing no switching response.
  • Electrical connection faults leading to intermittent operation.
  • Refrigerant leakage or pressure imbalance affecting performance.

Installation Steps

Step 1: Disconnect power and safely recover refrigerant from the system.

Step 2: Cut out the faulty valve and clean tubing ends thoroughly.

Step 3: Position the new reversing valve and braze connections using purge to prevent oxidation.

Step 4: Reconnect the solenoid coil wiring securely.

Step 5: Pressure test for leaks, then evacuate the system to proper vacuum levels.

Step 6: Recharge refrigerant, restore power, and test heating/cooling operation.
