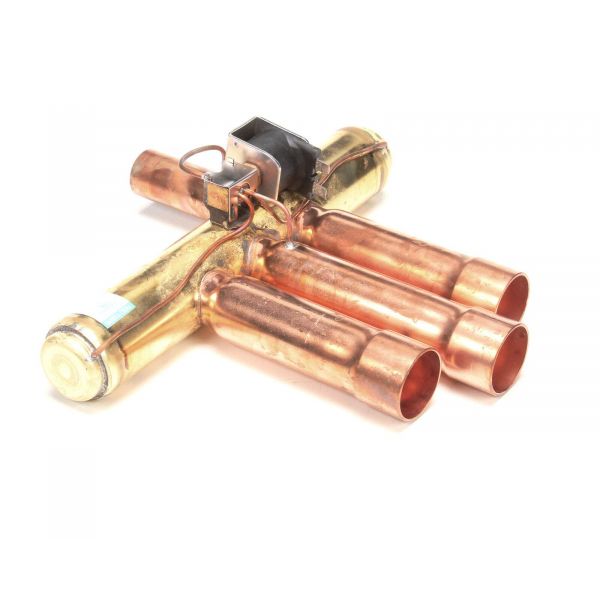

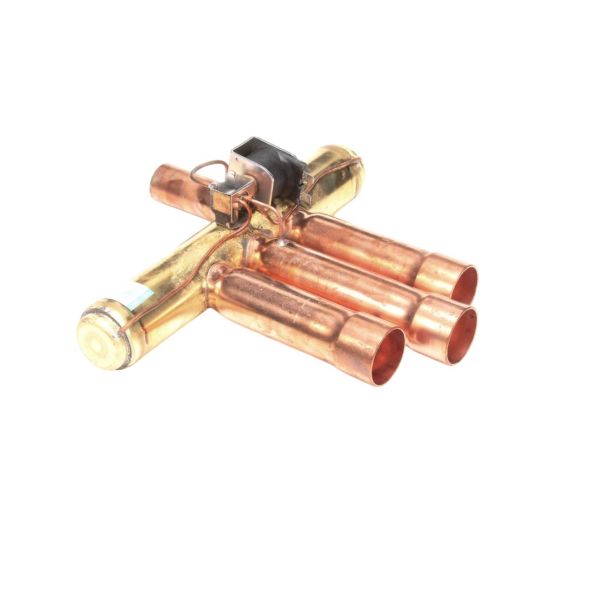

Sanhua International SHF-50-911D2 4-Way Reversing Valve

PRODUCT OVERVIEW:
Provides directional refrigerant-flow control within heat pump systems. The Sanhua International SHF-50-911D2 4-Way Reversing Valve changes the direction of refrigerant flow through the sealed refrigeration circuit, allowing the heat pump to transition between heating and cooling operation. Its four-port configuration connects the compressor and heat exchanger circuits within the refrigerant system.

PILOT PRESSURE ACTUATION:
Uses pressure differentials within internal pilot chambers to shift the main slide mechanism. High-pressure refrigerant routed through the pilot connections creates the pressure imbalance required to move the slide across the valve body. This pressure-driven movement changes the internal port alignment without relying on direct mechanical movement from an external actuator.

SLIDE VALVE MOVEMENT:
Uses an internal sliding mechanism to establish different refrigerant-flow pathways. Movement of the slide changes which ports are interconnected, redirecting refrigerant between the compressor, indoor coil, and outdoor coil circuits according to the selected operating mode.

REPLACEMENT GUIDELINES:
Replace the 4-Way Reversing Valve if it is damaged, malfunctioning, excessively worn, or otherwise deteriorated. Verify Sanhua International brand and SKU/part number SHF-50-911D2 before replacement. Replace the valve if deterioration affects slide movement, pressure actuation, refrigerant-flow direction, port sealing, or normal heat pump operation.

Common Signs of Wear:

• Heat pump remains in one operating mode despite a mode change.
• Refrigerant flow does not reverse correctly between heating and cooling.
• Internal slide movement becomes incomplete or inconsistent.
• Heating or cooling capacity becomes reduced.
• High-pressure refrigerant begins communicating with the suction circuit abnormally.
• Operating pressures become inconsistent between heating and cooling modes.
• Valve fails to change refrigerant-flow direction.

EQUIPMENT COMPATIBILITY:
The Sanhua International SHF-50-911D2 4-Way Reversing Valve is intended for heat pump equipment that specifies part number SHF-50-911D2. Verify the complete equipment model number and the manufacturer's parts documentation before purchasing to help confirm the correct application.

Technical Specifications:
Product identification:
Brand: Sanhua International
Part Number: SHF-50-911D2
Product Type: 4-Way Reversing Valve
