Sanhua International SHF-20D-47-02 Rev Valve 1/2 Inch Tube Esc 7/8 Inch

Special Price $79.78 Regular Price $91.75
In stock
SKU
SHF-20D-47-02

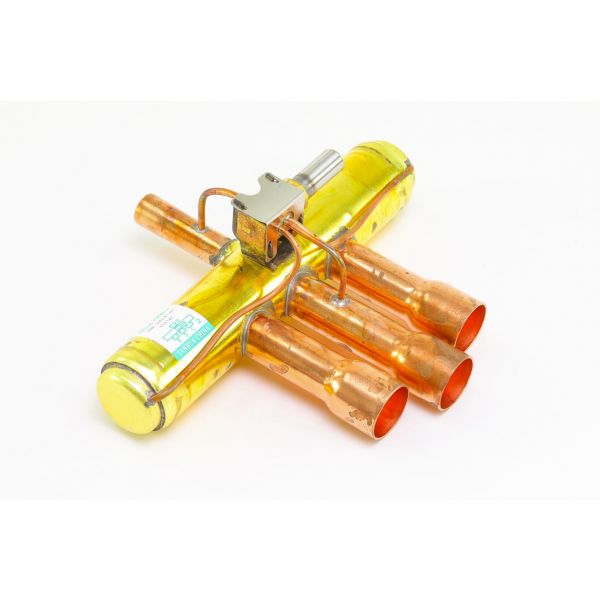

The Sanhua International SHF-20D-47-02 Reversing Valve 1/2" Tube 7/8" ESC is a refrigerant control component designed to change the direction of refrigerant flow in heat pump units within HVAC systems. It works by shifting internal slide equipment when energized, redirecting refrigerant between heating and cooling modes to reverse system operation. Commonly used in heat pumps and air conditioning units where dual-mode operation is required. A smooth switching, accurate performance, and efficient system control, assisting ensure consistent temperature regulation and operational flexibility in systems.
https://www.partshnc.com/media/catalog/product/s/h/shf-20d-47-02.jpg

PRODUCT OVERVIEW:
Refrigerant direction control is essential for heat pump systems that switch between heating and cooling operation. The Sanhua International SHF-20D-47-02 1/2" Tube Reversing Valve ESC 7/8" OEM component redirects refrigerant through the appropriate flow path when the system changes operating modes. Its tube connections support integration into the refrigerant circuit of equipment designed for this valve configuration.

SWITCHING OPERATION:
The reversing valve changes the refrigerant flow path within the heat pump circuit to support heating and cooling modes. Its internal slide mechanism shifts between positions to redirect refrigerant between the system components. This switching action enables the equipment to change its operating mode without manually reconfiguring the refrigerant piping.

REPLACEMENT GUIDELINES:
Replace the Sanhua International SHF-20D-47-02 1/2" Tube Reversing Valve ESC 7/8" when it fails to shift between operating positions, restricts refrigerant flow, or causes improper heating and cooling operation. Replacement may also be necessary if the valve develops refrigerant leakage or its internal mechanism becomes stuck or damaged. Have a qualified HVAC technician verify the refrigerant circuit and connection specifications before replacement.

COMMON FAILURE SYMPTOMS:

  • Heat pump fails to switch between heating and cooling modes.
  • Refrigerant flow remains directed through the wrong circuit path.
  • System provides insufficient heating or cooling.
  • Reversing valve becomes stuck during mode changes.
  • Refrigerant leakage develops around the valve or tube connections.

EQUIPMENT COMPATIBILITY:
The Sanhua International SHF-20D-47-02 1/2" Tube Reversing Valve ESC 7/8" OEM replacement component is intended for heat pump systems requiring the specified refrigerant reversing valve configuration. Verify the existing part number, equipment model, refrigerant requirements, valve configuration, and tube connection dimensions, including the 1/2" and 7/8" connections, before installation.

TECHNICAL SPECIFICATIONS:
Product Identification:
Brand: Sanhua International
Part Number: SHF-20D-47-02
Product Type: Refrigerant Reversing Valve
Physical Specifications:
Tube Connection Size: 1/2"
Additional Connection Size: 7/8"
Valve Configuration:
Valve Type: Reversing Valve
Primary Function: Refrigerant Flow Direction Switching
Application: Heat Pump Systems

Write Your Own Review
You're reviewing:Sanhua International SHF-20D-47-02 Rev Valve 1/2 Inch Tube Esc 7/8 Inch
Your Rating
Customer Questions
What is the primary function of the Sanhua International SHF-20D-47-02 reversing valve?

It redirects refrigerant flow between the heating and cooling circuits in a compatible heat pump system.

How does the Sanhua SHF-20D-47-02 reversing valve change operating modes?

It uses an electrical control signal to shift the internal valve mechanism and reverse the direction of refrigerant flow.

Which connection details should be checked when replacing the Sanhua SHF-20D-47-02?

Verify the SHF-20D-47-02 part number, 1/2-inch tube connection, 7/8-inch ESC connection, and compatibility with the system's refrigerant circuit.

When should the Sanhua SHF-20D-47-02 reversing valve be replaced?

Replace it if the valve leaks, becomes mechanically damaged, or fails to switch refrigerant flow correctly between operating modes.

What symptoms can a faulty Sanhua SHF-20D-47-02 reversing valve cause?

A malfunctioning valve can cause the heat pump to remain in one operating mode, provide inadequate heating or cooling, or fail to change modes.
