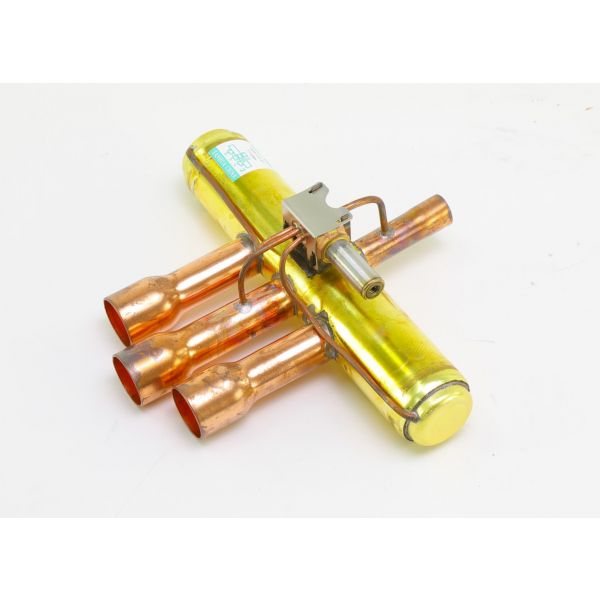

Sanhua International SHF-14-47 4-Way Reversing Valve 1/2" x 7/8" ODF

Rating:
5 5 1
1  Review Add Your Review
Special Price $67.93 Regular Price $78.12
In stock
SKU
SHF-14-47
The Sanhua International SHF-14-47 4-way reversing valve that is used in HVAC heat pump systems to allow for the change in the direction of the refrigerant flow for heating or cooling. It has 1/2” x 7/8” ODF connections and is suitable for use in residential and light commercial air conditioner and heat pumps. This valve also ensures that the mode transitions within the system are more reliable, saves energy, and stabilizes the indoor conditions. Its construction makes it high-quality and ideal for use in HVAC systems especially in areas that require the product to work under high pressure. This reduce mode transitions time and achieve better energy consumption and longer equipment service life.
Add to Wish List
HVAC Controls & Electrical, Valves
Manufacturer:
https://www.partshnc.com/media/catalog/product/s/h/shf-14-47.jpg

Specifications

  • Type: Reversing Valve
  • Valve Type: 4-Way
  • Connection Size: 1/2" x 7/8" ODF

PRODUCT OVERVIEW:
As part of a heat pump system, the Sanhua International SHF-14-47 4-Way Reversing Valve 1/2" x 7/8" ODF acts as the primary directional control component within the sealed refrigerant circuit. Installing this valve body into heat pump equipment enables dynamic directional switching of high-pressure refrigerant, allowing a single unit to handle both heating and cooling operations.

INTERNAL PORT ARRANGEMENT:
Inside the four-way valve body, the internal passage arrangement determines which refrigerant lines communicate with one another during operation. The valve's internal control element shifts between designated positions to establish the required combination of connections. This arrangement separates alternate flow paths while opening the passages associated with the selected circuit condition. By controlling communication between the connected ports, the valve determines how refrigerant travels through the heat-pump circuit.

HEAT PUMP MODE CHANGEOVER:
Changing between heating and cooling requires a different refrigerant circuit configuration. The reversing valve establishes this change by redirecting refrigerant between the compressor and the indoor and outdoor heat-transfer sections. With the circuit connections altered, the heat-transfer components exchange their respective roles within the refrigeration cycle. This allows the equipment to establish the refrigerant-flow arrangement required for the selected operating mode.

REPLACEMENT GUIDELINES:
Replacing the Sanhua SHF-14-47 valve body is necessary when internal slide binding, body cracking, or port seal degradation prevents proper pressure separation. Debris accumulation or internal physical wear can trap the slide mechanism mid-stroke, permitting discharge gas to short-circuit into the suction line. Installing a new valve restores sealed port separation and full flow directional control.

Common Failure Symptoms:

  • Unit stuck in a single operating mode despite control signals.
  • High-pressure discharge gas bypassing directly into the low-pressure suction line.
  • Reduced thermal output caused by a partially shifted internal slide.
  • Pressure equalization between high and low system lines.
  • Visible physical cracking or structural port damage.

EQUIPMENT COMPATIBILITY:
The Sanhua International SHF-14-47 applies to heat pump systems designed for 4-way reversing valves. Before purchasing, verify that the replacement part matches the exact attributes listed in the Technical Specifications table, including the brand, part number, product type, line connection sizes, and application.

Technical Specifications:
Product identification:
Brand: Sanhua International
Part Number: SHF-14-47
Product Type: 4-Way Reversing Valve
Physical specifications:
Line Connection Sizes: 1/2" x 7/8" ODF

Reviews 1
Write Your Own Review
You're reviewing:Sanhua International SHF-14-47 4-Way Reversing Valve 1/2" x 7/8" ODF
Your Rating
Product Questions (7)
Customer Questions
What maintenance is required for the Sanhua International SHF-14-47 Reversing Valve?

Regularly inspect the reversing valve for refrigerant leaks, sticking operation, or abnormal switching behavior. Ensure coil and connections are clean and securely attached. Maintain proper refrigerant charge and system cleanliness to support smooth and accurate heating and cooling mode transitions.

What are common issues with the Sanhua International SHF-14-47 Reversing Valve?

  • Valve sticking or failing to shift modes.
  • Refrigerant leakage at valve joints.
  • Incomplete switching between heating and cooling.
  • Coil or electrical activation failure.
  • Reduced system efficiency due to internal blockage.

What is the Sanhua International SHF-14-47 4-Way Reversing Valve used for?

The Sanhua International SHF-14-47 4-Way Reversing Valve redirects refrigerant within compatible heat-pump equipment to establish the flow arrangement required for heating or cooling operation.

How does the Sanhua SHF-14-47 change refrigerant direction?

The SHF-14-47 changes the internal connection between refrigerant passages so circulation follows the pathway associated with the selected operating mode.

What role does a 4-way reversing valve play in a heat pump?

A 4-way reversing valve changes the refrigerant circuit connections between the compressor and heat-transfer sections, allowing the heat pump to operate in different modes.

How does the SHF-14-47 relate to the heat-transfer coils?

The SHF-14-47 alters the refrigerant connections so the indoor and outdoor heat-transfer coils can exchange their respective roles within the refrigeration cycle.

Where is the Sanhua International SHF-14-47 installed in a heat-pump system?

The Sanhua International SHF-14-47 is installed within the refrigerant circuit, where its four-way configuration controls communication between the compressor and heat-transfer pathways.

Installation Steps

Step 1: Disconnect power and fully recover refrigerant from the HVAC system before servicing.

Step 2: Remove the defective reversing valve using proper brazing and refrigerant handling procedures.

Step 3: Position the new valve with correct flow orientation and connect lines securely.

Step 4: Braze connections while protecting the valve body from excessive heat.

Step 5: Pressure test for leaks, evacuate the system, and recharge refrigerant to manufacturer specifications.

Step 6: Restore power and verify proper heating and cooling operation.
