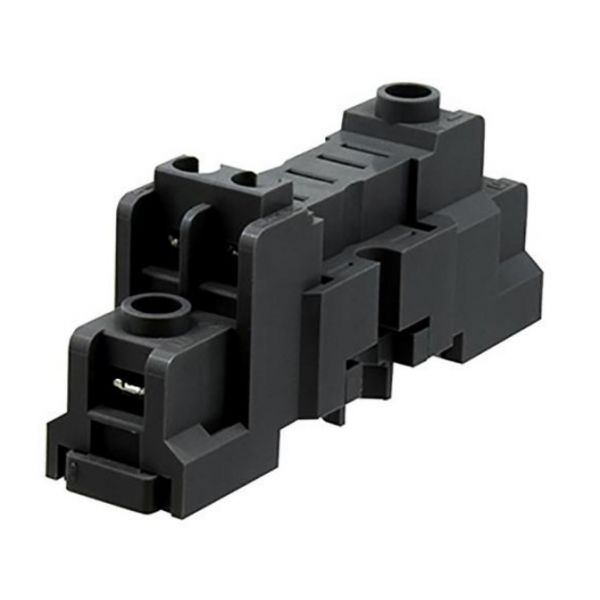

IDEC Relays SH1B-05 SPDT Relay Socket

The IDEC Relays SH1B-05 Relay Socket provides a mounting and wiring base for compatible single-pole double-throw receptacles. Its socket contacts correspond to the relay's coil and switching terminals, creating defined electrical connection points while allowing the relay to be removed without rewiring the circuit. The socket is mounted onto the designated surface or rail according to the equipment configuration, with the relay inserted directly into the socket in HVAC systems. Secure socket placement maintains electrical continuity, organizes control wiring, and allows convenient relay replacement during service while preserving the connected circuit arrangement.
