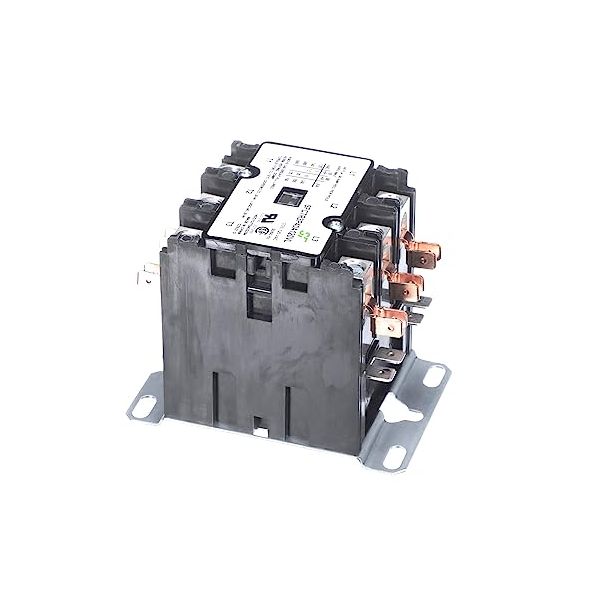

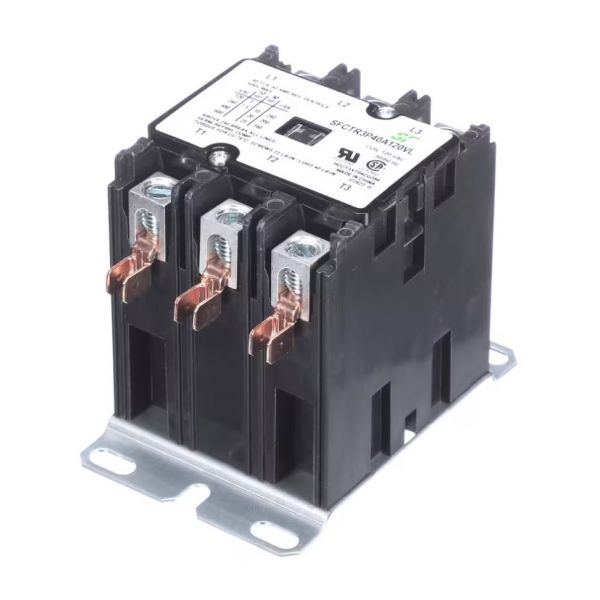

Trane SFCTR3P40A120VL 3-Pole Contactor 40A 120V
Special Price $33.63 Regular Price $43.72
In stock
SKU
SFCTR3P40A120VL
The Trane SFCTR3P40A120VL 3-Pole Contactor is one of those significant devices that are applied to HVAC equipment to manage the current in circuits. This contactor has a dimension of 2.91” L x 3.62”W x 2.37”H and is built with a heavy-duty design with 1 pole normally closed contact. It is designed for a current of 40A and can manage up to 1.5 HP power. It is for chassis mount or vertical application and employs a coil voltage of 120V to control electrical loads up to 600 VAC. Used to control power in several systems such as air conditioners and heat pumps, the contactor optimizes the switching process and guarantees the system's safe operation.
Manufacturer:
Specifications
- Length: 2.91"
- Width: 3.62"
- Height: 2.37"
- Contact Configuration: 1 Normally Closed
- Current Rating: 40 A
- For Use With: Optional Auxiliary Switch
- Mount: Chassis Mount/Vertical
- Number of Poles: 3
- Power Rating: 1.5 HP
- Switching Voltage: 600 VAC
- Terminal Type: Lug
- Coil Voltage: 120V
- Contact Current (A): 40 FLA, 160 LRA
- Frequency Rating: 50/60 Hz
- Material: Silver Cadmium Oxide Alloy Contact
- Aluminum Lug
- Resistive Load: 50 A
- Standards: CSA,SEMKO/CE,UL 508
- Temperature Rating: -40°F to 150°F
- Weight: 1.04lb
