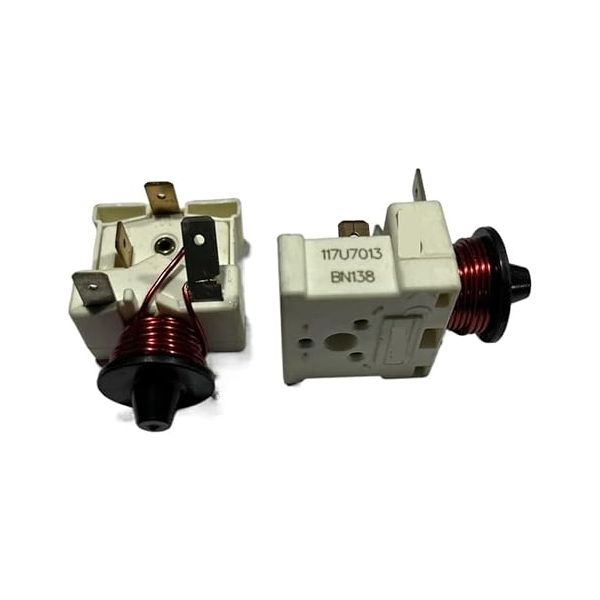

Secop Diversitech 117U7013 Start Relay

Rating:
5 5 1
1  Review Add Your Review
Special Price $23.79 Regular Price $30.92
In stock
SKU
117U7013
The Secop Diversitech 117U7013 Start Relay is an electrical starting component designed to activate a compressor's start winding during motor startup. It responds to the current drawn by the compressor, connecting the start circuit at startup and automatically disconnecting it once the motor reaches the required speed. It supports proper motor startup, reduces unnecessary electrical load on the start winding, and maintains proper switching between the start and run circuits during each startup sequence. Installed directly onto the compressor terminal assembly, it provides controlled electrical switching for compressors operating in HVAC systems that use current-type start units.
Add to Wish List
HVAC Controls & Electrical, Relays,
Manufacturer:
https://www.partshnc.com/media/catalog/product/1/1/117u7013.jpg

Specifications

  • Type: Relay
    Write Your Own Review
    You're reviewing:Secop Diversitech 117U7013 Start Relay
    Your Rating
    Product Questions (2)
    Customer Questions
    What maintenance is required for the Secop Diversitech 117U7013 Start Relay?

    Regularly inspect the relay for signs of overheating, wear, or damage. Ensure electrical connections are tight and free from corrosion. Keep the component clean and protected from dust or moisture. Always disconnect power before handling to prevent electrical hazards.

    What are common issues with the Secop Diversitech 117U7013 Start Relay?

    • Relay failing to engage compressor.
    • Intermittent or inconsistent switching performance.
    • Overheating during operation.
    • Contact wear leading to poor electrical conductivity.
    • Buzzing or clicking noises.

    Installation Steps

    Step 1: Turn off power to the compressor or HVAC unit for safety.

    Step 2: Locate the existing start relay on the compressor.

    Step 3: Carefully remove the old relay, noting wiring connections.

    Step 4: Install the new start relay in the correct position.

    Step 5: Reconnect all wiring according to the manufacturer’s instructions.

    Step 6: Restore power and test the compressor to ensure it starts and operates correctly.
