main product photo

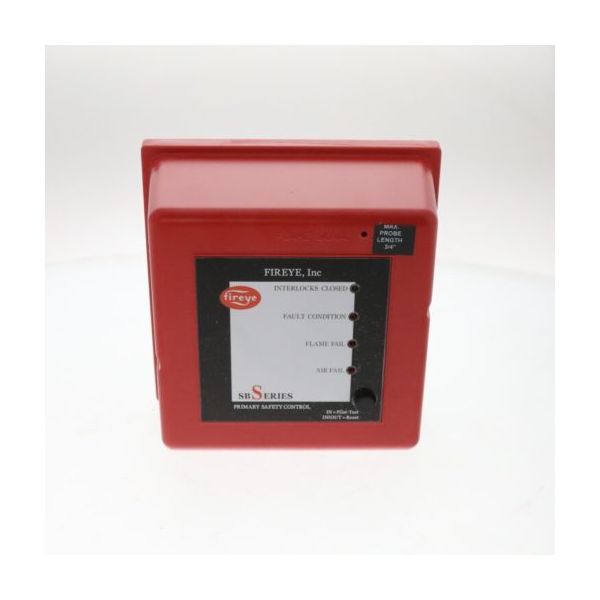

Fireye SB560522AA Burner Control Module Purge 10-15Sec TFI 120 VAC

Rating:
5 5 2
2  Reviews Add Your Review
Special Price $1,532.01 Regular Price $1,700.54
In stock
SKU
SB560522AA
The Fireye SB560522AA Burner Control Module is an essential component in HVAC systems. It is used for controlling the burners safely. It has a self-cleaning mechanism that removes any fuel vapor that may remain in the chamber before ignition to increase safety and performance. It takes 10 to 15 seconds to ignite the trial which is enough to establish the correct combustion conditions. This module is used in many heating processes like furnaces and boilers and it has advantages like enhanced reliability and less chances of explosion as well as meeting safety requirements. It can be usedd into HVAC systems so that it can provide heat while observing the safety measures.
Add to Wish List
Fireye Burner Controls, HVAC Controls & Electrical, Control Boards & Modules
Manufacturer:
https://www.partshnc.com/media/catalog/product/s/b/sb560522aa_fireye_partshnc.png

Specifications

  • Type: Burner Control Module Purge
  • Trial for Ignition: 10/15 Seconds
  • Voltage: 120VAC
Manufacturer Name: Fireye
Product Number: SB560522AA
OEM Part Number: SB560522AA
Product Description: 120Vac 10/15Tfi, Uv, Purge
Weight:2.19lbs/993.37g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews 2
Write Your Own Review
You're reviewing:Fireye SB560522AA Burner Control Module Purge 10-15Sec TFI 120 VAC
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Fireye SB560522AA Burner Control Module?

Ensure all wiring connections remain tight and free from corrosion or damage. Keep the control module clean and dry to prevent electrical faults. Verify stable voltage supply during operation.

What are common issues with the Fireye SB560522AA Burner Control Module?

  • Control lockout preventing system operation.
  • Ignition sequence failure stopping startup.
  • Purge cycle malfunction affecting safety timing.
  • Communication errors between control components.
  • Overheating causing module shutdown.

Installation Steps

Step 1: Turn off power supply to the burner system to prevent electrical hazards.

Step 2: Remove the existing control module carefully, noting wiring connections.

Step 3: Align and mount the new control module securely in the designated slot.

Step 4: Reconnect wires exactly as per the wiring diagram.

Step 5: Restore power and test system operation.
