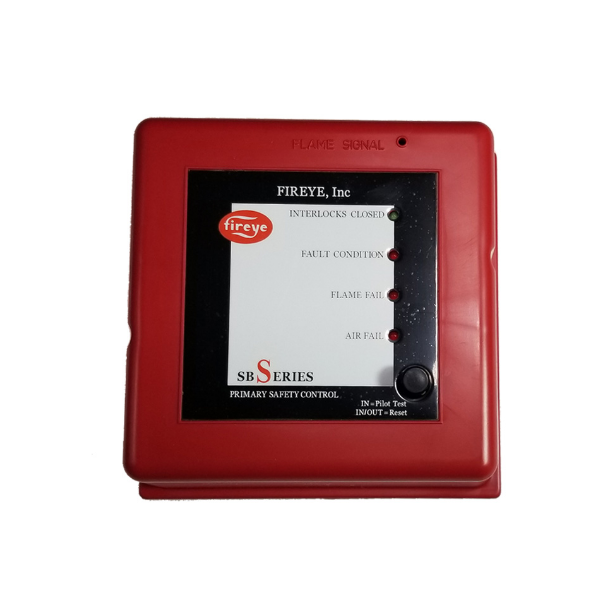

Fireye SB560223AA Flame Safeguard Control Flame Rod Purge Control 5-10Sec TFI 120Vac

Rating:
5 5 7
7  Reviews Add Your Review
Special Price $1,559.37 Regular Price $1,730.90
In stock
SKU
SB560223AA

The Fireye SB560223AA is a flame safety control system that ensures the safe and efficient functioning of your gas-fired HVAC equipment, including boilers and furnaces. It operates on a conventional 120-volt AC power source and has a number of important characteristics for dependable operation. The flame rod, which measures the ionization current a flame produces to determine its presence, is one essential part. The control system receives this information and uses it to continuously monitor the flame and make sure it stays lit while in operation. In addition, a 5/10 Try For Ignition  sequence is included in the SB560223AA. The Industry standard procedure aims to light the burner for five seconds, after which it will turn off if no flame is seen.

Add to Wish List
Fireye Burner Controls, HVAC Controls & Electrical, Safety & Limit Devices
Manufacturer:
https://www.partshnc.com/media/catalog/product/s/b/sb560223aa_fireye_partshnc.png
Monitors the flame-sensing portion of an applicable burner control sequence and supports the purge-related operating stage before normal combustion continues. The Fireye SB560223AA Flame Rod Purge 120 VAC 5/10TFI is designed for equipment using the corresponding control arrangement. It serves as a control component associated with flame rod sensing and timed burner operation, helping the system progress through its designated operating stages.

Flame Signal Processing:
Flame-sensing circuits monitor the electrical signal associated with flame presence during burner operation. The control arrangement interprets this signal during the applicable operating stage and uses the resulting condition as part of the combustion safety sequence. Recognition of the required signal allows the associated sequence to continue according to the equipment control design. This process connects flame sensing with the controlled progression of burner operation.

Burner Cycle Coordination:
Purge, ignition, and combustion stages operate as part of an ordered sequence involving several interconnected control components. The control system coordinates these stages by recognizing the required operating conditions before progressing to subsequent portions of the cycle. Its interaction with flame sensing and other burner controls supports coordinated combustion operation. Each stage contributes to the overall management of the equipment's burner cycle.

Replacement Guidelines:
Replacement of the Fireye SB560223AA Flame Rod Purge Control is necessary when visible damage, deterioration, or other physical conditions affect the control's intended flame-safeguard operation. Inspect the control and related connection areas for conditions that could affect proper flame monitoring and control within the burner system. Replace the component when it can no longer maintain its intended flame-safeguard operation within the equipment.

Common Failure Symptoms:

  • Burner operation does not progress through the expected control sequence.
  • The combustion cycle stops before reaching its normal operating stage.
  • Flame-related operating conditions are not recognized within the control arrangement.
  • The burner sequence remains interrupted during an applicable operating stage.
  • The equipment does not continue through its designated combustion cycle.

Equipment Compatibility:
The Fireye SB560223AA is specified as a 120 VAC, 5/10-second TFI, selectable-purge control with FR amplifier, pre-purge air check, and reset on power. Confirm that the existing burner or combustion system requires this same control configuration to the part number matches the equipment requirements before purchase.

Technical Specifications:
Brand: Fireye
SKU / Part Number: SB560223AA
Product Type: Flame Rod Purge Control
Configuration: 5/10TFI
Electrical Requirement: 120VAC

Reviews 7
Write Your Own Review
You're reviewing:Fireye SB560223AA Flame Safeguard Control Flame Rod Purge Control 5-10Sec TFI 120Vac
Your Rating
Product Questions (7)
Customer Questions
What maintenance is required for the Fireye SB560223AA Flame Rod Purge Control?

Regularly inspect the flame rod and control unit for corrosion, dirt, or loose connections. Clean the rod carefully with a non-abrasive cloth and check wiring integrity. Proper maintenance ensures reliable ignition and prevents false lockouts. Always turn off power before servicing to avoid electrical hazards.

What are common issues with the Fireye SB560223AA Flame Rod Purge Control?

  • Failure to detect flame or ignition errors.
  • Intermittent burner shutdowns.
  • Faulty or loose electrical connections.
  • Control board component failure.

How does a flame rod purge control support the burner sequence?

It coordinates purge and flame-sensing stages within the applicable combustion control arrangement as part of the timed burner sequence.

How does the control interact with flame sensing during burner operation?

It monitors the flame-sensing condition during the applicable burner stage and uses the resulting signal as part of the combustion control sequence.

Which burner stages does the control help coordinate?

It supports the ordered progression of purge, ignition, and combustion stages by recognizing required operating conditions before the sequence advances.

Why should the control configuration correspond with the burner management system?

The 5/10TFI configuration specifies the applicable control arrangement and should correspond with the burner management system used by the equipment.

What does the Fireye SB560223AA identify?

The Fireye SB560223AA identifies a Flame Rod Purge Control designed for the corresponding burner control arrangement.

Installation Steps

Step1: Turn off power to the burner and allow it to cool.

Step2: Remove the burner access panel to expose the existing control.

Step3: Label wiring or take a photo for reference.

Step4: Disconnect wires and remove the old Flame Safeguard Control.

Step5: Mount the new unit and reconnect wiring per label/diagram.

Step6: Replace the panel, restore power, and test flame control operation safely.
