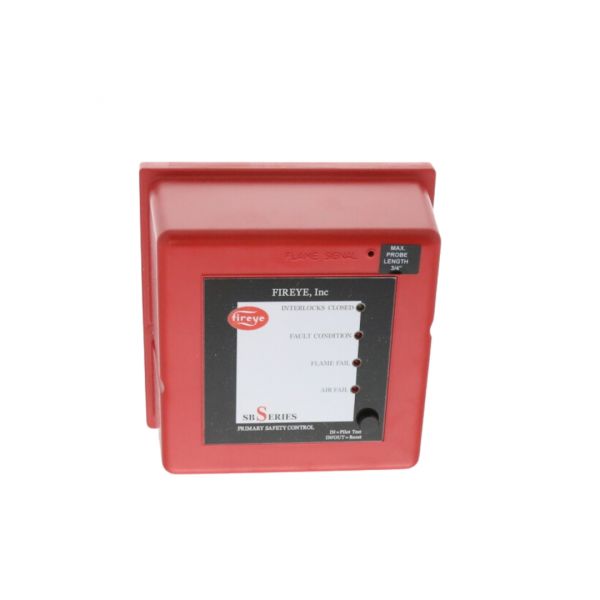

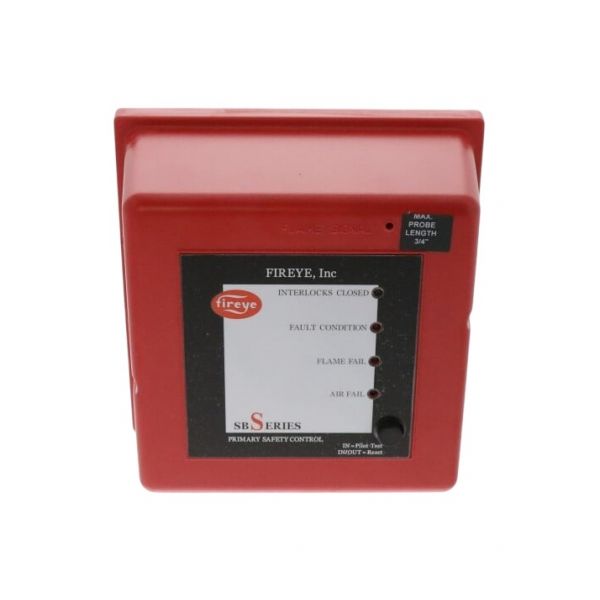

Fireye SB560222AA Flame Safeguard Control UV Purge Control 5-10Sec TFI 120Vac

Be the first to review this product
Special Price $1,371.96 Regular Price $1,522.87
In stock
SKU
SB560222AA

The Fireye SB560222AA is a flame protection control system that maintains safe and efficient operation in industrial burner applications. It is powered by 120VAC and uses UV sensing to keep an eye on the flame. To avoid any dangers, the technology immediately turns off the burner if the flame goes out or becomes unsteady. It is perfect for use in different HVAC equipment such as furnaces, boilers, and ovens because of its properties. In addition, the purge function aids in clearing the combustion chamber before ignition, and the 5/10 Trial for Ignition system guarantees safe and efficient ignition sequences. Installing the Fireye SB560222AA has several benefits including enhanced efficiency, lower emissions, and safer operation.

Add to Wish List
Manufacturer:
https://www.partshnc.com/media/catalog/product/f/i/fireye_sb560222aa.jpg
Manufacturer Name: Fireye
Product Number: SB560222AA
OEM Part Number: SB560222AA
Product Description: 120Vac 5/10Tfi Uv Purge
Weight:2.19lbs/993.37g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Fireye SB560222AA Flame Safeguard Control UV Purge Control 5-10Sec TFI 120Vac
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Fireye SB560222AA Flame Safeguard Control?

Inspect the flame safeguard control regularly for loose wiring, damaged terminals, and proper sensor operation. Keep the control enclosure clean and free from dust or moisture buildup. Test purge and ignition timing functions periodically to confirm safe burner sequencing. Disconnect electrical power before servicing the unit.

What are common issues with the Fireye SB560222AA Flame Safeguard Control?

  • Lockout faults during ignition sequence.
  • Intermittent burner shutdowns from faulty amplifier readings.
  • Purge timing or ignition sequence errors.
  • Loose wiring causing inconsistent flame monitoring operation.

Installation Steps

Step 1: Turn off power and lockout/tagout supply before servicing burner system.

Step 2: Mount securely on control panel or burner interface in approved location.

Step 3: Wire UV sensor, purge, and burner interlocks per manufacturer schematic, ensuring correct polarity.

Step 4: Configure TFI timing and verify voltage compatibility before initial startup.

Step 5: Restore power and test flame safeguard cycle; ensure safe shutdown on fault conditions.
