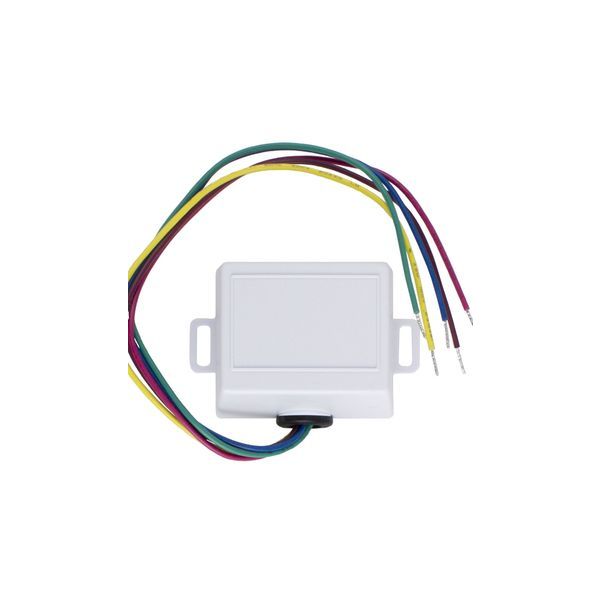

Emerson Climate-White Rodgers SA11 Thermostat Common Wire Kit

Special Price $55.02 Regular Price $63.27
In stock
SKU
SA11
The Emerson Climate-White Rodgers SA11 Thermostat Common Wire Kit is a component that is necessary to provide continuous common power to compatible thermostats in HVAC Systems. This system facilitates appropriate system operation, which does not involve altering the current wiring. It is applied in residential and commercial installations where there is no common wire, to support and control temperature adjustment according to the standard operating concept. The kit used into the standard heating and cooling systems, minimizes power outages, and ensures the stable operation of thermostats in regular conditions.

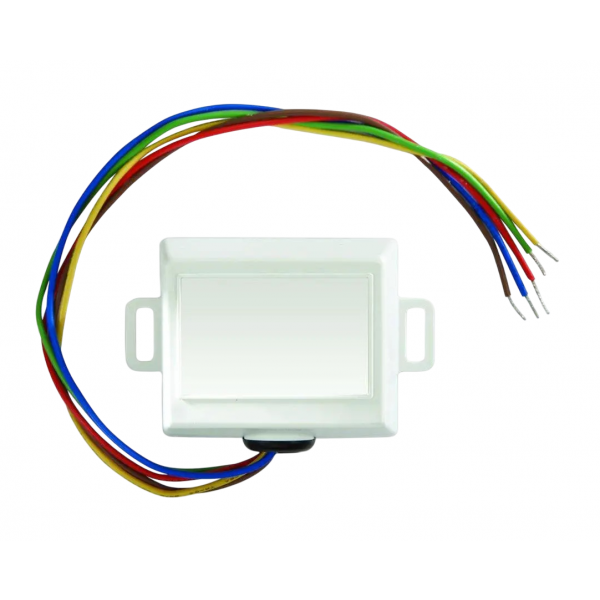

https://www.partshnc.com/media/catalog/product/s/a/sa11.jpg

Product Overview:
Provides an additional thermostat wiring connection for supported HVAC control arrangements without requiring a new cable run. The Emerson Climate-White Rodgers SA11 Thermostat Common Wire Kit is an accessory designed to adapt existing thermostat wiring when additional conductors are needed. Its common wire accessory and Diode Y component work together to support different thermostat wiring configurations, including applications requiring an additional connection for heating, cooling, or thermostat power.

Wiring Adaptation:
Uses an accessory module and Diode Y component to reorganize existing thermostat conductors for supported HVAC applications. This arrangement can help accommodate a thermostat requiring an additional wire, address certain broken-wire situations, or add cooling control to an existing heating arrangement. The wiring configuration depends on the number of existing conductors and the connected HVAC equipment.

Wiring Connections and Setup:
The kit includes a thermostat common wire accessory, a Diode Y component, and wire nuts for making the necessary wiring connections. The accessory is installed inside the HVAC unit or control box and connects to the existing thermostat wiring. Its components work together to adapt the wiring arrangement for supported thermostat control applications

Replacement Guidelines:
Replace the Emerson Climate-White Rodgers SA11 Thermostat Common Wire Kit when inspection confirms that the accessory, Diode Y component, or connecting wires are damaged or no longer provide reliable electrical connections. Replacement may be necessary when wiring connections become intermittent, the accessory shows physical deterioration, or the configured thermostat wiring arrangement no longer functions correctly because of a confirmed kit fault. Have a qualified HVAC technician inspect the accessory and associated wiring before replacement.

Common Signs of Failure:
Thermostat loses continuous power during operation.

Display becomes blank or intermittently shuts down.

Common-wire connection fails to maintain electrical continuity.

Thermostat functions become inconsistent after wiring configuration.

Diode accessory or connecting wires show visible damage.

Equipment Compatibility:
The Emerson Climate-White Rodgers SA11 Thermostat Common Wire Kit is intended for compatible HVAC thermostat wiring arrangements where an additional conductor is needed without running a new cable. It supports configurations in which five-wire thermostats operate using four existing wires and can provide an additional connection for compatible four-wire systems. Verify the thermostat terminals, HVAC wiring arrangement, and system requirements before selecting this OEM accessory. It is not suitable for two-wire systems.

Technical Specifications:
Brand: Emerson Climate-White Rodgers
Part Number: SA11
Product Type: Thermostat Common Wire Kit

Write Your Own Review
You're reviewing:Emerson Climate-White Rodgers SA11 Thermostat Common Wire Kit
Your Rating
Customer Questions
What is the Emerson White-Rodgers SA11 thermostat common wire kit used for?

It adapts existing HVAC thermostat wiring to support additional connections required by certain thermostat configurations.

What components are included in the SA11 kit?

The kit includes one thermostat common wire accessory, one Diode Y component, and four wire nuts.

Can the SA11 help when an additional thermostat wire cannot be installed?

Yes. It is designed for supported wiring arrangements where running another conductor is not practical, allowing existing wires to be adapted for the required thermostat connections.

What wire gauge is recommended for the SA11 installation?

The installation instructions specify 18–22 AWG unshielded wire, with different maximum accessory-to-thermostat distances depending on the wire gauge.

What should be checked before installing a thermostat common wire kit?

Check the existing thermostat wiring, HVAC terminal connections, equipment control arrangement, and required jumper configuration. Follow the manufacturer's wiring diagrams and electrical safety instructions.
