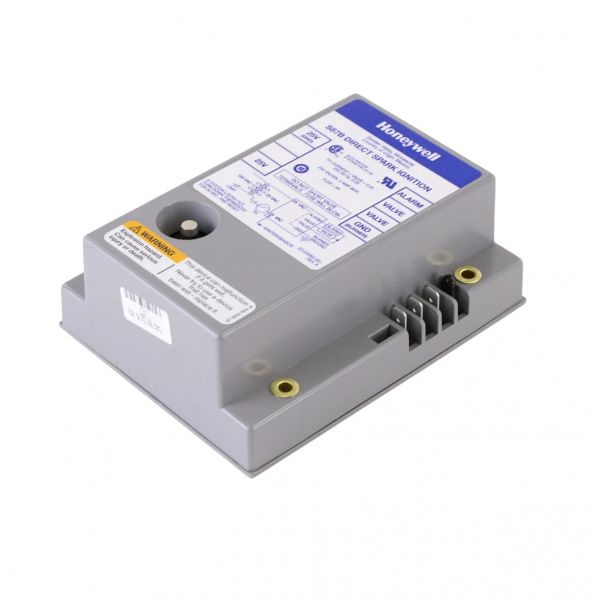

Resideo S87B1016 Direct Spark Ignition Control One Rod 11 Sec

Be the first to review this product
Special Price $382.44 Regular Price $424.50
Out of stock
SKU
S87B1016
The Resideo S87B1016 Direct Spark Ignition Control is a complex component that enhances the reliability of ignition of gas-fired heating. This control device works at 60 Hz and 25 VAC, and it has only one igniter-sensor rod that controls the ignition process effectively through direct spark ignition. The S87B1016 controls the ignition sequence for gas burners to guarantee a reliable and safe ignition. It has an 11 second lockout timer that are useful in preventing the burner from being ignited if the first attempt did not work. This function minimizes the risk of harmful conditions and harm to such tools as machines. It is suitable for home and commercial gas furnaces and other gas fired heating appliances.
Add to Wish List
HVAC Controls & Electrical, Control Boards & Modules
Manufacturer:
https://www.partshnc.com/media/catalog/product/s/8/s87b1016.jpg

Specifications

  • Ignition Type: Direct Spark Ignition
  • Frequency: 60 Hz
  • Voltage: 25 VAC
  • Igniter-Sensor Rod: Single
  • Lockout Timing: 11 sec

Product Overview:
Controls the direct spark ignition sequence in gas-fired heating equipment by managing the ignition-control operation. The Resideo S87B1016 1-Rod Direct Spark Ignition Control is an OEM ignition-control component featuring a one-rod configuration and an 11-second timing specification. Its direct spark ignition design supports burner ignition control in equipment requiring the corresponding ignition configuration and timing.

Ignition Operation:
The ignition control manages the direct spark ignition sequence by providing an 11-second trial for establishing the main burner flame. The control operates without a prepurge period and coordinates ignition activity with corresponding gas-fired equipment and associated control components during burner startup.

Flame Safety Monitoring:
The control monitors burner flame through its single-rod flame-sensing arrangement. When flame is not established during the ignition trial, the control shuts down the ignition sequence and enters lockout. Its specified flame failure response time is 0.8 seconds, defining the response period to loss of the detected flame signal.

Replacement Guidelines:
The Resideo S87B1016 is specified for gas-fired heating equipment using a direct spark ignition system with single-rod flame sensing. Verify the equipment model, applicable manufacturer documentation, gas type, control voltage, ignition timing, and terminal arrangement before purchasing.

Common Failure Symptoms:

  • Direct spark ignition sequence fails to initiate.
  • Main burner does not establish flame during the ignition trial.
  • Control enters lockout unexpectedly or repeatedly.
  • Flame signal is lost during normal burner operation.
  • Control or electrical terminals show visible damage or deterioration.

Equipment Compatibility:
The Resideo S87B1016 is specified for gas-fired heating equipment using a direct spark ignition system with single-rod flame sensing. Verify the equipment model, applicable manufacturer documentation, gas type, control voltage, ignition timing, and terminal arrangement before purchasing.

Technical Specifications:
Brand: Resideo
SKU: S87B1016
Ignition Type: Direct Spark Ignition
Igniter-Sensor Rod: Single
Lockout Timing: 11 sec
