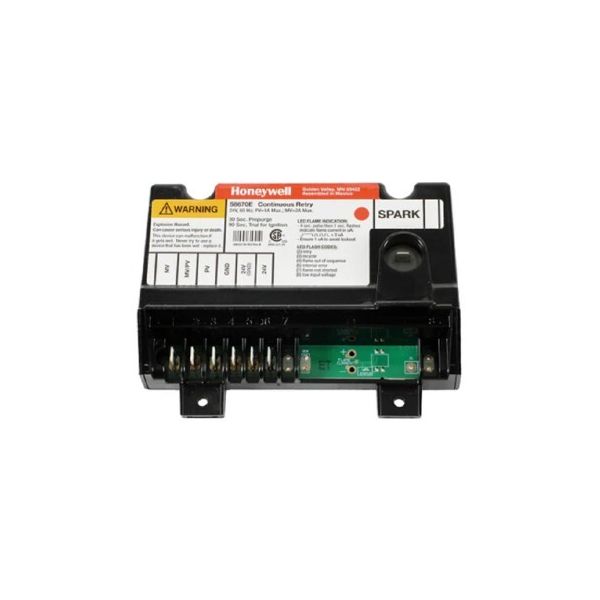

Resideo S8670E3003/B Ignition Module W/Pre-Purge

Be the first to review this product
Special Price $160.47 Regular Price $184.54
In stock
SKU
S8670E3003/B
The Resideo S8670E3003/B Ignition Module is an essential part of gas-fired HVAC systems. It is intended for pilot operation occasionally and effectively controls the igniting process with natural and liquid propane gas. The present module also has a pre-purge option to eradicate any remaining gasses in the fire chamber to enhance security before igniting. Some of the characteristics include; flames failure response time of 2 seconds which enable the shutdown of the system in case of a fault. The module is designed for use with VR8204 and VR8304 gas controllers and has a single rod flame sensor for better detection. It is designed sturdy and the machine can operate in a temperature range of -40°F to +175°F.
Add to Wish List
HVAC Controls & Electrical, Control Boards & Modules
Manufacturer:

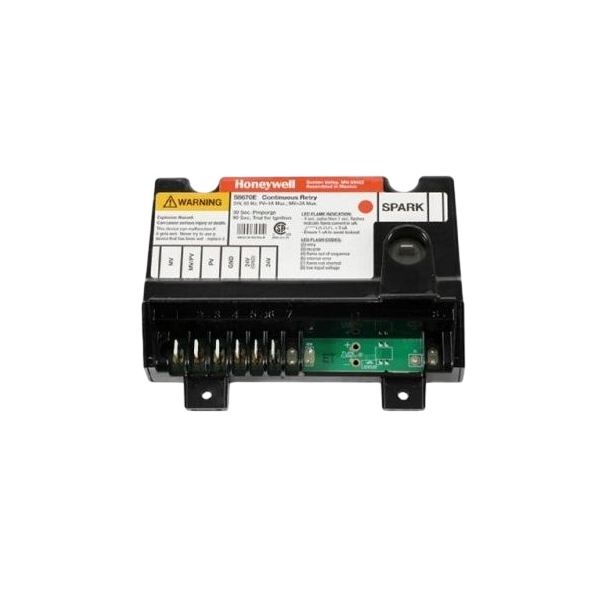

https://www.partshnc.com/media/catalog/product/s/8/s8670e3003-b.jpg

Specifications

  • Type: Ignition Module
  • Dimensions: 3-15/16" high x 5-7/16" wide x 2-5/8" deep
  • Electrical Ratings: 24 VAC
  • Frequency: 60 Hz
  • Approvals, Canadian Standards Association: Design Certified
  • Flame Failure Response Time: 2 Seconds maximum
  • PrePurge: 30 Seconds
  • Temperature Range: -40°F to +175°F
  • Ignition System Type: Intermittent Pilot
  • Typical Gas Control: VR8204, VR8304
  • Type of Gas: Natural or LP
  • Flame Sense: Single Rod
  • Ignition Trial Time: 90 Sec
  • Maximum Valve Load @ 24 Vac (Amps): 1A Pilot, 2A Main @ 24Vac
  • Typical Ignition Hardware: Q345, Q3451
  • Between Trial Time (sec): 5 minute delay after failed trial for ignition
Manufacturer Name: Resideo
Product Number: S8670E3003/B
OEM Part Number: S8670E3003/B
Product Description: Ignition Module W/Pre-Purge
Weight:0.38lbs/172.36g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Resideo S8670E3003/B Ignition Module W/Pre-Purge
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Resideo S8670E3003/B Ignition Module?

Regularly inspect the ignition module for dirt, soot, or loose wiring connections. Clean carefully with a soft brush and ensure proper ventilation around the module. Check for secure mounting and functional pre-purge operation to prevent ignition failures and ensure safe system performance.

What are common issues with the Resideo S8670E3003/B Ignition Module?

  • Failure to ignite.
  • Intermittent sparking.
  • Electrical connection problems.
  • Pre-purge not activating correctly.

Installation Steps

Step 1: Shut off power to the system to prevent electrical hazards.

Step 2: Remove the existing ignition module and label all wiring connections.

Step 3: Install the new ignition module in the designated control location.

Step 4: Reconnect all wiring according to the system diagram, ensuring correct terminal placement.

Step 5: Verify any pre‑purge timing settings per manufacturer instructions.

Step 6: Restore power and test the system to confirm proper ignition sequence and safe operation.
