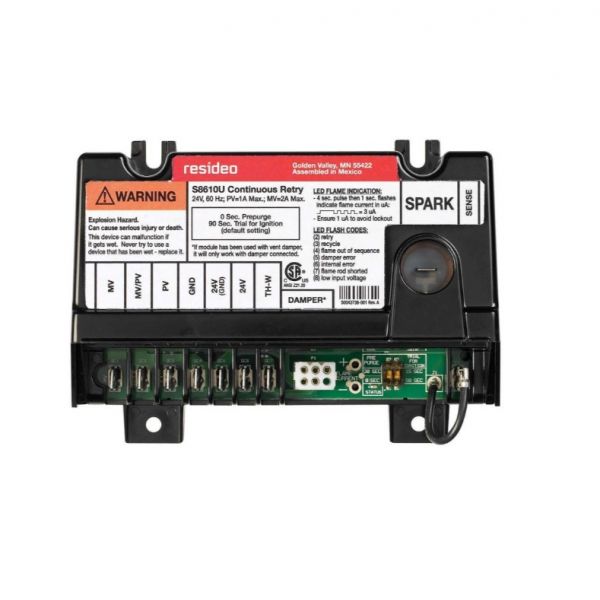

Resideo S8610U3009 Multi-System Intermittent Pilot Ignition Module

Rating:
5 5 1
1  Review Add Your Review
Special Price $137.78 Regular Price $158.45
In stock
SKU
S8610U3009
The Resideo S8610U3009 Multi-System Universal Intermittent Pilot Ignitor is a universal part designed for intermittent pilot ignition systems used in heating equipment that utilizes natural gas and LPG. This device employs an inbuilt high-voltage spark igniter for the pilot flame ignition to guarantee effectiveness in its operations. Its continuous retry ignition procedure tries to ignite the flame again and again, providing more safety and comfort. The features of this ignitor are programmable pre-purge for safety, a flame failure response time of 2 seconds and an auto reset time of 1 minute.
Add to Wish List
HVAC Controls & Electrical, Control & Sensing Devices
Manufacturer:
https://www.partshnc.com/media/catalog/product/s/8/s8610u3009_1.jpg

Specifications

  • Type: Multi-System Universal Intermittent Pilot Ignition
  • Application: Intermittent Pilot
  • Approvals and Standards: CSA- Design Certified
  • Type of Fuel: Natural Gas, LPG
  • Ignition Type: Intermittent Pilot
  • Ignition Source: Internal high voltage spark generator
  • Ignition Between Trail Time: 5 minute delay after failed trial for ignition
  • Ignition Sequence: Continuous Retry
  • Ignition Trial Time: 15 or 90 Seconds
  • Ignitor Electrical Rating: 24 VAC
  • Pre-Purge: Configurable to 30 sec or no prepurge
  • Flame Failure Response Time: 2 Seconds maximum
  • Flame Sense: Two Rod, Single Rod
  • Auto Reset Delay Timing: 1 min
  • Power Consumption: 2 VA
  • Typical Ignition Hardware: Q345, Q3451, Q3452
  • Typical Gas Control: VR8204, VR8304
  • Frequency: 60 Hz
  • Voltage: 24 VAC
  • Color: Black
  • Compatible With: Intermittent pilot warm air furnaces and heating appliances
  • Dimensions: 2.63" x 5.44" x 3.94"
  • Temperature Range: -40°F to +165°F

Resideo S8610U3009 Ipmodulesel.Pp 0Or30,Tfi 15/90

The Resideo S8610U3009 Ipmodulesel.Pp 0Or30,Tfi 15/90 is a versatile control module suitable for use in a variety of heating systems. Its advanced features enable precise temperature control and efficient operation. The module allows users to choose from a variety of operating parameters, including a proportional control range of 0 to 30, as well as a temperature feedback input range of 15 to 90°F. This wide range of settings allows for customization to meet different heating needs and ambient conditions. The module supplies consistent and reliable performance, improving the comfort and energy efficiency of the heating system in which it operates. Its user-friendly interface makes it simple to configure and operate, while its rugged construction ensures long-term dependability. The Resideo S8610U3009 Ipmodulesel is suitable for use in both residential and commercial environments. Pp 0Or30,Tfi 15/90 provides precise control and dependable operation, ensuring optimal heating system performance.

Key Features for S8610U3009 Resideo Ipmodulesel.Pp 0Or30,Tfi 15/90

  • Component for an IP-based security system: It might be a part that plays a role in an IP-based security system, enabling communication between various security devices over a network.
  • Communication interface for IP modules: There's a possibility it acts as a bridge between IP modules and the main system, facilitating data transmission.
  • Power supply for specific IP modules: It could be a dedicated power unit that supplies electricity to specific IP modules within the system.

Signs of a Faulty Resideo S8610U3009 Ipmodulesel.Pp 0Or30,Tfi 15/90:

  • Communication Issues: You might experience issues with your security system's communication. This could manifest as disconnected devices, delayed responses, or malfunctioning remote access.
  • Specific Device Malfunctions: Devices that rely on the S8610U3009 for communication might malfunction or become unresponsive.
  • System Instability: The entire security system might exhibit instability, with random errors or unexpected behavior.

Choose the best HVAC equipment parts and supplies from PartsHNC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews 1
Write Your Own Review
You're reviewing:Resideo S8610U3009 Multi-System Intermittent Pilot Ignition Module
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Resideo S8610U3009 Intermittent Pilot Ignition Module?

Periodic inspection of wiring and flame sensor connections ensures accurate ignition. Keep module free of dust and moisture. Verify grounding and test safety shutdown operation. Replace damaged connectors promptly to avoid ignition failures and system lockouts.

What are common issues with the Resideo S8610U3009 Intermittent Pilot Ignition Module?

  • Ignition failure due to weak flame signal or sensor fault.
  • No spark or intermittent spark output from module.
  • System lockout after repeated failed ignition attempts.
  • Wiring issues or loose connections causing inconsistent operation.

Installation Steps

Step 1: Turn off all gas and electrical power; confirm system is fully de-energized before servicing.

Step 2: Label and disconnect existing wiring from old ignition module, and ground connections.

Step 3: Mount the new module securely in the control compartment using existing bracket or screws.

Step 4: Reconnect wiring exactly per diagram, ensuring solid ground connection and correct terminal placement.

Step 5: Restore power and gas, then observe ignition sequence and safety lockout operation.
