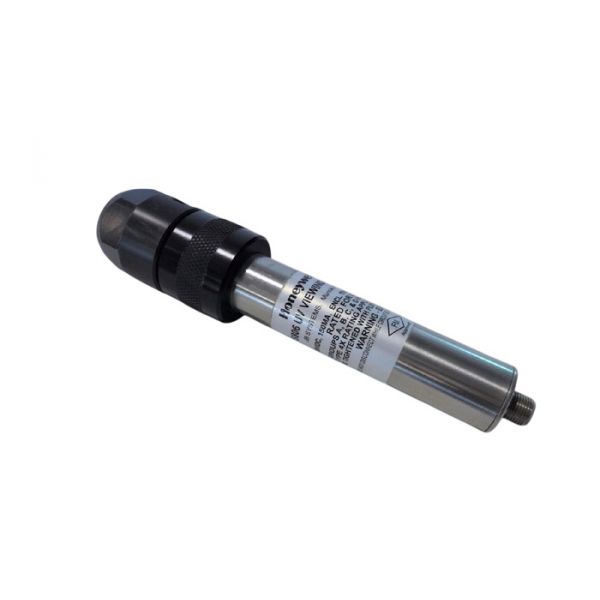

Honeywell S806 UV Flame Viewing Head C/W Quick Disconnect 15'

Rating:
5 5 1
1  Review Add Your Review
Special Price $2,038.03 Regular Price $2,262.22
In stock
SKU
S806

The Honeywell S806 Viewing Head with Quick Disconnect offers a seamless solution for enhancing HVAC system functionality. Designed for easy monitoring and inspection of critical components, this viewing head spans 15 feet and integrates effortlessly into commercial and industrial HVAC equipment, including air handling units and refrigeration systems. Its quick disconnect feature ensures swift installation and removal, simplifying maintenance tasks. Constructed with durability, the S806 guarantees reliable performance and clear visibility for inspections, promoting optimal system efficiency and longevity. With user-friendly attributes and robust design, it streamlines maintenance procedures, minimizing downtime and maximizing overall HVAC system performance.

Add to Wish List
Manufacturer:
https://www.partshnc.com/media/catalog/product/s/8/s806.jpg
Manufacturer Name: Honeywell
Product Number: S806
OEM Part Number: S806
Product Description: Viewing Head C/W Quick Dis 15'
Weight:2.53lbs/1147.59g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews 1
Write Your Own Review
You're reviewing:Honeywell S806 UV Flame Viewing Head C/W Quick Disconnect 15'
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Honeywell S806 UV Flame Viewing Head C/W Quick Disconnect?

Clean the UV sensor lens regularly to prevent dust or soot buildup that can reduce flame detection accuracy. Inspect the quick disconnect and wiring for secure connections and corrosion. Test alignment and response to ensure accurate flame monitoring.

What are common issues with the Honeywell S806 UV Flame Viewing Head C/W Quick Disconnect?

  • lens contamination reducing UV sensitivity.
  • loose quick disconnect causing intermittent signal.
  • wiring faults or corrosion.
  • misalignment with flame source.
  • false flame no flame detection due to electrical noise.
  • sensor drift over time affecting detection stability.

Installation Steps

Step 1: Shut off burner power and gas supply; allow system to cool completely to avoid UV and heat exposure hazards.

Step 2: Remove the old flame sensor/head and disconnect wiring using quick disconnect safely.

Step 3: Mount new viewing head in correct flame sighting position with clear line-of-sight.

Step 4: Connect harness ensuring secure, clean electrical connection.

Step 5: Restore power, start burner, and check stable flame signal with no alarm faults.
