main product photo

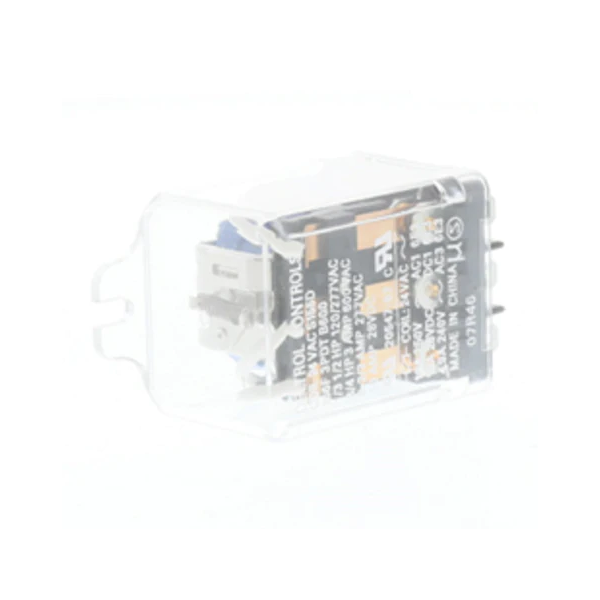

York S1-9536-3551 3PDT Cubed Relay Coil 24V

Be the first to review this product
Special Price $105.31 Regular Price $121.11
Out of stock
SKU
S1-9536-3551
The York S1-9536-3551 is an essentialcontrol module that is used to control the functions of several systems in HVAC equipment. This relay is cubed and has the 3PDT contact which means that it could switch three circuits at a time. It is driven by a 24V coil and works effectively to control the electrical signals that cause or release connected components. It measures a small 5” x 5” x 2” which means it is easy to install in HVAC systems without much interference with space. This relay is essentialfor enhancing the efficiency and durability of your HVAC system. This is because it gives many circuit control and hence enables the compressors, fans and other essentialparts to operate more efficiently.
Add to Wish List
HVAC Controls & Electrical, Relays,
Manufacturer:
https://www.partshnc.com/media/catalog/product/s/1/s1-9536-3551_york_partshnc.png

Specifications

  • Type: Cubed Relay
  • Contact Configuration: 3PDT
  • Voltage: 24V
  • Dimensions: 5" X 5" X 2"
Manufacturer Name: York
Product Number: S1-9536-3551
OEM Part Number: S1-9536-3551
Product Description: 24Vcoil 3Pdt Cubed Relay
Weight:0.23lbs/104.33g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:York S1-9536-3551 3PDT Cubed Relay Coil 24V
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the York S1-9536-3551 Cubed Relay?

Regularly inspect the relay for signs of wear, overheating, or corrosion on contacts. Ensure all electrical connections are secure and clean. Keep the relay free from dust and moisture. Always disconnect power before handling to avoid electrical hazards.

What are common issues with the York S1-9536-3551 Cubed Relay?

  • Relay failing to energize or switch properly.
  • Contact wear causing intermittent operation.
  • Overheating due to voltage irregularities.
  • Electrical noise or chattering during operation.

Installation Steps

Step 1: Disconnect power to the HVAC equipment and verify all circuits are de-energized.

Step 2: Open the control panel and locate the existing relay.

Step 3: Label and disconnect the relay wires to ensure correct reconnection.

Step 4: Remove the old relay from its socket or mounting bracket.

Step 5: Install the relay, ensuring the pins align properly with the socket.

Step 6: Reconnect the wires according to the unit wiring diagram.

Step 7: Restore power and test relay operation to confirm proper switching of connected control circuits.
