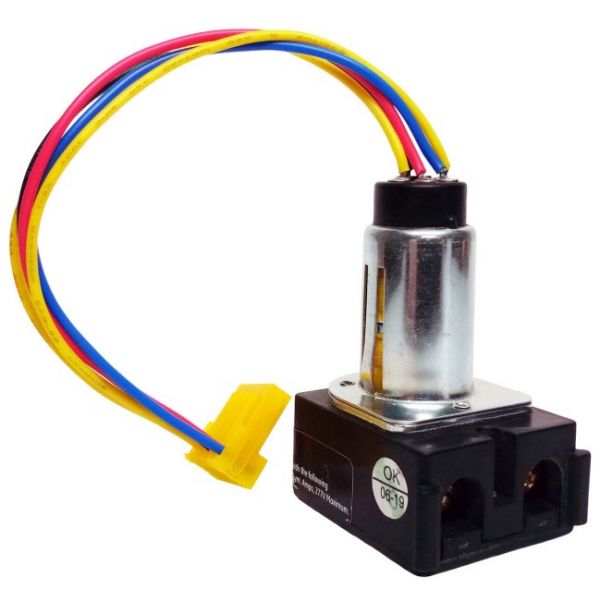

General Electric Products RR9PBP 5-Pin Pilot Light Relay

Be the first to review this product
Special Price $117.39 Regular Price $134.99
In stock
SKU
RR9PBP
The General Electric Products RR9PBP 5-Pin Pilot Light Relay is an electromechanical control that is used in industrial and HVAC systems. It enables low-voltage control signals to drive higher-power circuits, which is used for switching and indicating its status using its built-in pilot light. It is in a control panel or motor starter assembly, and it allows coordinated action to work. It helps to achieve effective and consistent performance of the system in both commercial and residential, HVAC systems through visual indication and switching.
Add to Wish List
HVAC Controls & Electrical, Relays,
Manufacturer:
https://www.partshnc.com/media/catalog/product/r/r/rr9pbp-1.jpg
Write Your Own Review
You're reviewing:General Electric Products RR9PBP 5-Pin Pilot Light Relay
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the General Electric Products RR9PBP Pilot Light Relay?

Regularly inspect the relay for dust, corrosion, or loose connections. Test the relay operation periodically and ensure the pilot light functions correctly. Proper maintenance prevents electrical faults and ensures accurate system signaling. Always disconnect power before servicing.

What are common issues with the General Electric Products RR9PBP Pilot Light Relay?

  • Relay failing to actuate.
  • Burned or pitted contacts.
  • Loose or corroded connections.
  • Pilot light not illuminating.

Installation Steps

Step 1: Turn off power to the circuit to ensure safety.

Step 2: Remove the old relay and note wiring connections.

Step 3: Mount the new relay in the same position.

Step 4: Reconnect wires to the corresponding pins according to the manufacturer diagram.

Step 5: Ensure all connections are tight and secure.

Step 6: Restore power and test the pilot light and relay operation.
