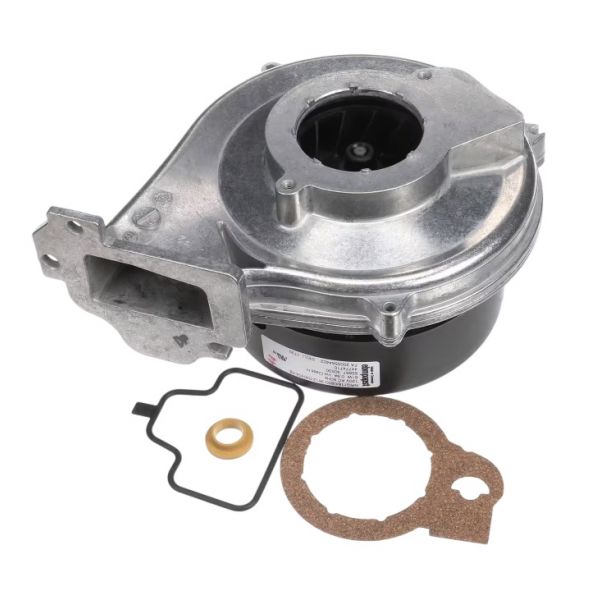

Rinnai 808000020 Fan Assembly 120V 60Hz Q85S/Q130S

Provides forced-air movement within the combustion and heat-transfer system. The RINNAI 808000020 Fan Assembly uses a motor-driven fan to move air through the equipment's internal air path, supporting the airflow required for combustion and heat exchange. Consistent airflow helps maintain the movement of combustion air through the system and supports stable operation of the connected heating components.

Airflow Generation:
Creates mechanical airflow by rotating the fan assembly at the required operating speed. The rotating fan moves air through the connected air path, providing the circulation needed for the equipment's combustion and heat-transfer processes. Stable airflow supports consistent movement of air through the system during active operation.

Combustion Air:
Supplies controlled airflow to support the combustion process. The fan assembly helps move the required air volume through the combustion air pathway, allowing the heating system to maintain the airflow conditions associated with normal burner operation. Proper air movement also supports the controlled exchange of combustion-related gases within the equipment.

Replacement Guidelines:
Replacing the Fan Assembly is appropriate if it is damaged, malfunctioning, excessively worn, or otherwise deteriorated. Verify the RINNAI part number 808000020 and the full equipment model number before replacing it. Replace the fan assembly if deterioration affects airflow generation, motor operation, combustion-air movement, heat exchange, or normal equipment operation.

Common Failure Symptoms:

• Fan failing to start during an operating cycle.
• Reduced or inconsistent airflow through the equipment.
• Fan operation becoming intermittent.
• Unusual noise or vibration during fan operation.
• Motor-driven airflow becoming weak or irregular.
• Heating operation becoming inconsistent.

Equipment Compatibility:
The Rinnai 808000020 Fan Assembly is specified for Rinnai Q-Series boilers, including the Q85S and Q130S models. It serves as the fan assembly within these boiler systems and should be matched to the specific boiler model and applicable manufacturer parts documentation when confirming compatibility.

Technical Specifications:
Part Number: 808000020
Brand: RINNAI
Product Type: Fan assembly
Voltage: 120V
Frequency: 60Hz
