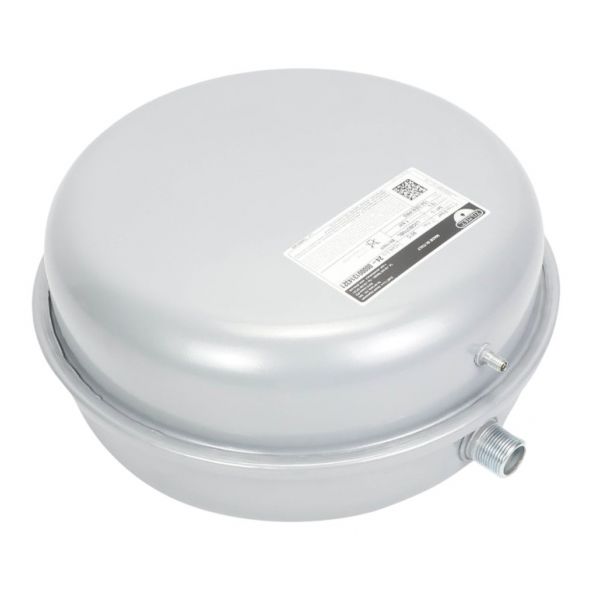

Rinnai 807000052 Expansion Vessel 12L E110C

Maintains pressure within the closed hydronic heating circuit by accommodating water volume changes caused by temperature variations. the Rinnai 807000052 Expansion Vessel provides a dedicated vessel for accommodating changes in heating-water volume within the closed heating circuit. The 12-liter expansion vessel forms part of the boiler's hydraulic assembly and works with the connected heating-water components as the system operates.

Thermal Expansion Control:
An expansion vessel accommodates the increase in water volume that occurs when water is heated within a closed hydronic circuit. As temperature rises, the expanded water enters the available expansion space, limiting the effect of thermal volume changes on circuit pressure. When the water temperature decreases, the volume changes accordingly. This operating principle allows the vessel to manage pressure variations associated with changes in water temperature.

Heating Cycle Support:
Within the Rinnai E110C boiler system, the expansion vessel forms part of the closed heating circuit serving the boiler and connected heating loop. During heating operation, it accommodates water volume changes associated with rising temperatures. During cooling periods, it accommodates the corresponding reduction in water volume. Its role is therefore connected to maintaining appropriate hydraulic conditions as the boiler transitions through its operating cycle.

Replacement Guidelines:
Replacing the expansion vessel is appropriate if it is damaged, malfunctioning, excessively worn, or otherwise deteriorated. Verify part number 807000052 and the complete equipment model number before replacement. Replace the expansion vessel if deterioration affects pressure regulation or fluid expansion within the heating system.

Common Failure Symptoms:

• Significant pressure increases during heating operation
• Repeated pressure relief valve discharge
• Frequent pressure fluctuations within the heating circuit
• Difficulty maintaining stable operating pressure
• Reduced ability to accommodate water volume changes

Equipment Compatibility:
The Rinnai 807000052 Expansion Vessel 12L E110C is intended for applicable Rinnai equipment requiring the specified expansion vessel configuration. Confirm the equipment model number, existing vessel identification, and manufacturer's parts documentation before selecting the component.

Technical Specifications:
Part Number: 807000052
Brand: Rinnai
Component Type: Expansion Vessel
Capacity: 12 L
Application: E110C Boiler
