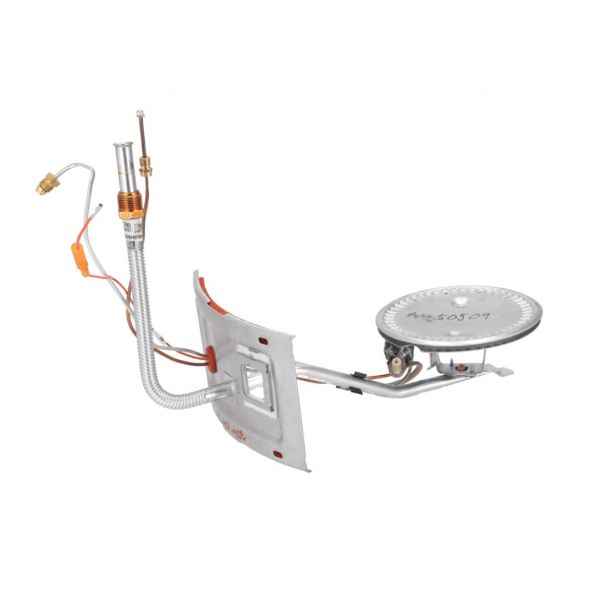

Rheem-Ruud AM50509 Burner/Door Assembly

Rating:
5 5 1
1  Review Add Your Review
Special Price $162.98 Regular Price $187.43
In stock
SKU
AM50509
The Rheem-Ruud AM50509 Burner/Door Assembly is a heating element that surrounds the flame and creates a safe connection with the combustion chamber. It ensures that fuel ignition is done in controlled conditions besides providing the necessary access to maintenance. It is installed as a component of the heating section to ensure that there is the proper balance of airflow and combustion. It is a vital component of the HVAC systems in the support of the reliability of heat production, the safety of internal parts, and the stability of the work of the system during heating processes.
Add to Wish List
Heating & Furnace Parts, Burners
Manufacturer:
https://www.partshnc.com/media/catalog/product/a/m/am50509.jpg
Write Your Own Review
You're reviewing:Rheem-Ruud AM50509 Burner/Door Assembly
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Rheem-Ruud AM50509 Burner/Door Assembly?

Regularly inspect the burner and door assembly for secure mounting and proper alignment. Clean soot, dust, or debris that may affect combustion. Check for corrosion, cracks, or damage. Ensure safe operation by testing ignition and seals carefully.

What are common issues with the Rheem-Ruud AM50509 Burner/Door Assembly?

  • Difficulty igniting or inconsistent flame.
  • Soot buildup affecting performance.
  • Loose or misaligned components.
  • Corrosion or cracks reducing efficiency.

Installation Steps

Step 1: Turn off all power and fuel supply to the heating system.

Step 2: Remove the existing burner/door assembly carefully, noting the orientation of all components.

Step 3: Position the new assembly in place and secure it with the provided screws or fasteners.

Step 4: Reconnect any electrical or gas lines according to the manufacturer’s instructions.

Step 5: Ensure proper sealing of the door to prevent leaks.

Step 6: Restore power and fuel, then test burner ignition and operation.
