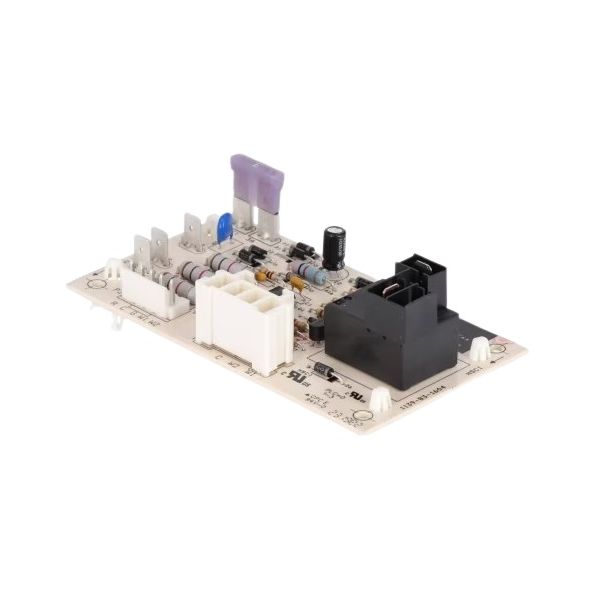

Rheem-Ruud 47-100436-08K Control Board Kit

Be the first to review this product
Special Price $49.60 Regular Price $64.48
In stock
SKU
47-100436-08K
The Rheem-Ruud 47-100436-08K Control Board Kit is an electronic part that is used to synchronize and sequence electrical operations in HVAC systems. It has thermostats and sensors feeding it, processes these signals and sends out to fans, compressors, valves and safety circuits using built in relays and connectors. The board is mounted in the control compartment of the unit and connects to other wiring harnesses to either replace or upgrade the central logic module of the system.
Add to Wish List
Manufacturer:
https://www.partshnc.com/media/catalog/product/4/7/47-100436-08k.jpg
Write Your Own Review
You're reviewing:Rheem-Ruud 47-100436-08K Control Board Kit
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Rheem-Ruud 47-100436-08K Control Board Kit?

Inspect wiring connections for looseness or corrosion and ensure the board is free from dust buildup. Keep the control compartment dry and properly sealed. Routine checks help prevent electrical faults. Always shut off power before handling to avoid electrical shock.

What are common issues with the Rheem-Ruud 47-100436-08K Control Board Kit?

  • Intermittent system startup failures.
  • Burned or damaged circuit traces.
  • Communication errors with the thermostat.
  • Relay clicking without system response.
  • Voltage irregularities affecting operation.

Installation Steps

Step 1: Turn off all power to the HVAC system and confirm it is fully de-energized.

Step 2: Remove the access panel to reach the existing control board.

Step 3: Disconnect all wiring from the old board, labeling connections if needed.

Step 4: Remove the old control board and mount the new board securely.

Step 5: Reconnect all wires according to the labeled configuration.

Step 6: Replace the access panel, restore power, and test system operation.
