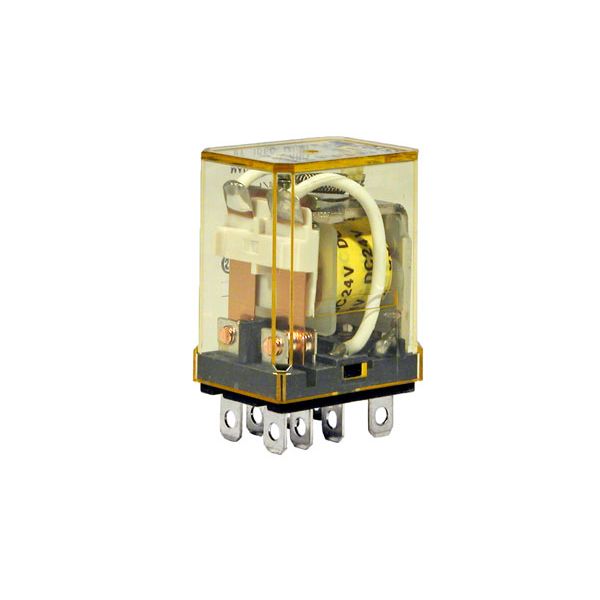

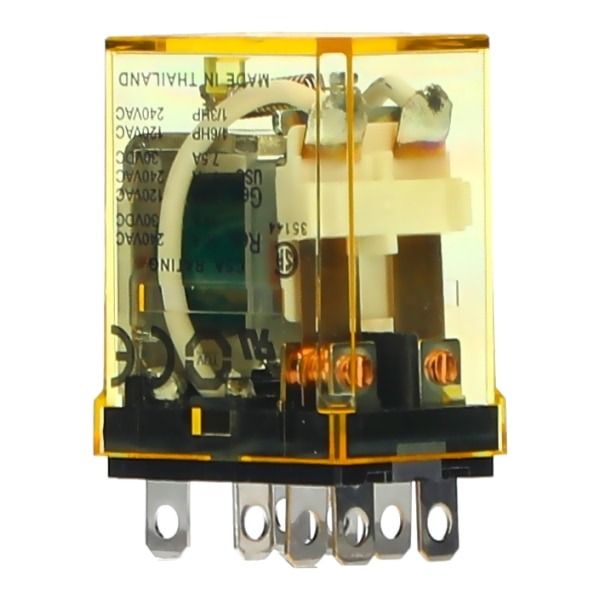

The IDEC Relays' RH2B-UAC110-120V DPDT The 110-120V General Purpose Relay is a dependable electrical part intended to regulate a range of apparatus and systems. This relay's double-pole, double-throw design, and 110–120V rating make it adaptable and appropriate for a variety of uses. The device is particularly useful in HVAC systems, where it controls the functioning of heating and cooling equipment. The relay enables effective control and administration of the HVAC system by accepting electrical signals and then switching between several circuits. The benefits include improved safety, toughness, and controllability, guaranteeing HVAC equipment operates at peak efficiency and making installation and maintenance simple. For both residential and business environments, the IDEC Relays RH2B-UAC110-120V provides the reliability and efficiency necessary for effective HVAC operation.
Manufacturer Name:IDEC Relays Product Number: RH2B-UAC110-120V OEM Part Number: RH2B-UAC110-120V
Product Description Of RH2B-UAC110-120V Dpdt 110-120V Gen:
The DPDT (Double Pole Double Throw Configuration) relay provides two sets of contacts, allowing it to control two separate circuits with a common ground. The relay features a coil designed to operate with a voltage of 120VAC, ensuring compatibility with standard electrical systems. With a robust switching capacity of 10 Amperes, this relay is well-suited for controlling A/C motors, handling moderate to high current loads with ease. Specifically engineered for A/C motors, the RH2B-UAC110-120V Idec Power Relays offers versatile control, enabling functions such as starting, stopping, or reversing the motor as needed. Built with durability in mind, the relay is constructed with quality materials to withstand the demands of A/C motor applications, ensuring a longer lifespan. The relay provides reliable and consistent switching performance, maintaining stable connections for efficient operation of A/C motors. Designed with a quick response time, the relay ensures prompt and precise switching actions, crucial for the dynamic requirements of A/C motor control. Equipped with a coil indicator, providing a visual signal when the coil is energized, aiding in monitoring the relay's status. Tailored specifically for A/C motor control applications, offering a reliable and efficient solution for various HVAC and industrial settings. Designed and manufactured in compliance with relevant safety standards to ensure electrical safety and reliability. Screw terminals provide a secure and convenient method for wiring connections, simplifying the installation process. The RH2B-UAC110-120V Idec Power Relays is capable of operating within an extended temperature range, ensuring reliability in diverse environmental conditions. The compact design allows for space-efficient installation, making it suitable for various applications where space is a consideration.
Key features of the IDEC Relays motor coils used in A/C motors are:
Minimizes electromagnetic interference during switching operations.
Handles moderate to high current loads, ideal for A/C motor control.
Controls two separate circuits with a common ground for versatile applications.
Tailored for A/C motor control applications in HVAC and industrial settings.
The DPDT relay with a 120VAC coil and 10A switching capacity is commonly used in air conditioning motors to control functions such as start, stop, and reverse. Its double-pole, double-throw configuration and robust switching capacity make it versatile for managing various motor operations in HVAC systems and industrial applications.
Weight:0.08lbs/36.29g
Choose the best HVAC equipment parts and supplies from PartsHnC!
How does the relay contribute to energy efficiency in A/C motor applications?
The relay's efficient switching and control capabilities contribute to energy efficiency by ensuring precise and timely control of A/C motors, optimizing their performance.
Can this DPDT relay be used for both starting and stopping A/C motors?
Yes, the double-pole, double-throw configuration enables the relay to handle both the starting and stopping functions of A/C motors.
Does the DPDT relay support a mechanical latching system, and how is it useful?
May include a mechanical latching system, allowing the relay to maintain its state even after the control signal is removed. This feature is useful for specific motor control scenarios.
