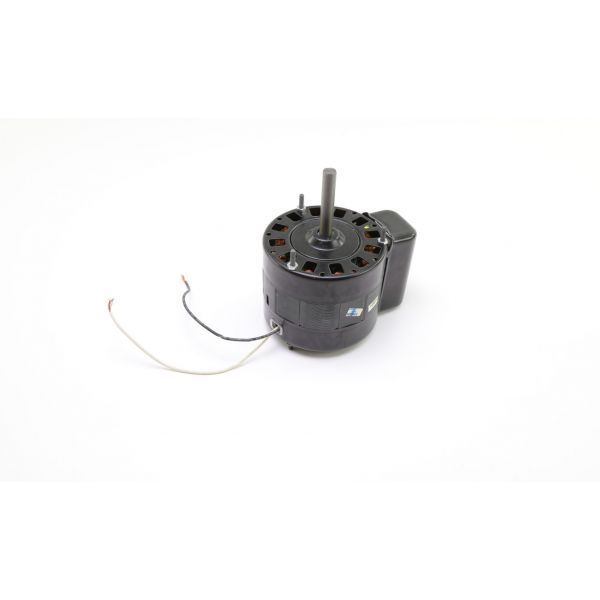

Reznor 55681 1/8 HP Blower Motor 1140 RPM 60Hz 115V 1-Phase

Special Price $447.09 Regular Price $496.27
In stock
SKU
55681
The Reznor 55681 Fan Motor is an electric component used to move the air-moving element of the HVAC systems. It has a rated horsepower of 1/8 and a 1140 revolutions-per-minute output, rated at 115-volt service, which supplies measured torque to circulate air in heat exchangers, filters, and ductwork of residential and light commercial heating and cooling equipment. It is installed in the air handlers, furnaces, or rooftop units and is utilised in conjunction with the blower wheel and control circuitry to maintain the airflow consistent, assist in the control of temperature, and also aid in the overall ventilation performance.
Manufacturer:
https://www.partshnc.com/media/catalog/product/5/5/55681-reznor_partshnc.jpg

Blower assemblies rely on a dedicated motor to generate the mechanical movement needed for air circulation. The Reznor 55681 is a blower motor that supplies rotational drive to the connected blower assembly, allowing the blower to maintain its required mechanical movement during operation.

Electrical Operation and Motor Power:
Electrical input drives the motor's operating cycle, producing the mechanical output needed by the blower assembly. This motor operates at 115V, 1-phase, 60Hz and is rated at 1/8 HP, establishing its electrical operating configuration and available mechanical power.

Rotational Output and Blower Drive:
Mechanical output is delivered through the motor's rotating shaft at a rated speed of 1140 RPM. This rotational rate determines the motor's specified drive speed as the shaft supplies movement to the connected blower during operation.

Replacement Guidelines:
Replacement may be appropriate when the Reznor 55681 develops persistent deterioration in mechanical performance or when physical damage affects its ability to provide dependable blower drive. Before ordering, compare the existing part number with the applicable equipment requirements and verified specifications.

Common Failure Symptoms:

  • Motor fails to start
  • Intermittent blower operation
  • Irregular shaft rotation
  • Unusual motor noise
  • Excessive vibration

Equipment Compatibility:
The Reznor 55681 Blower Motor is associated with SCA150, SCA300, and SCA350 equipment models. When sourcing this motor, compare the existing part number with the original motor and applicable model requirements, including the required electrical and mechanical characteristics.

Technical Specifications:
Part Identification:
Brand: Reznor
Part Number: 55681
Product Type: Blower Motor

Electrical:
Voltage: 115V
Phase: 1-Phase
Frequency: 60Hz

Mechanical:
Horsepower: 1/8 HP
Speed: 1140 RPM

Write Your Own Review
You're reviewing:Reznor 55681 1/8 HP Blower Motor 1140 RPM 60Hz 115V 1-Phase
Your Rating
Customer Questions
Which Reznor equipment models are associated with part 55681?

The Reznor 55681 Blower Motor is associated with the SCA150, SCA300, and SCA350 models.

What kind of blower motor configuration does the 55681 use?

The 55681 is a 1/8 HP, 1140 RPM blower motor designed for 115V, 1-phase, 60Hz operation.

Why is the 1140 RPM rating relevant to this blower motor?

The rated speed establishes the motor's specified rotational operating rate and forms part of its mechanical output characteristics.

How can the 55681 part number help when researching this motor?

The 55681 part number provides the specific reference for locating and comparing this Reznor blower motor with the motor associated with the existing application.

What information is useful when comparing a Reznor 55681 with an existing blower motor?

The part number, associated Reznor model, electrical configuration, horsepower, and rated speed are useful verified details for comparison.
