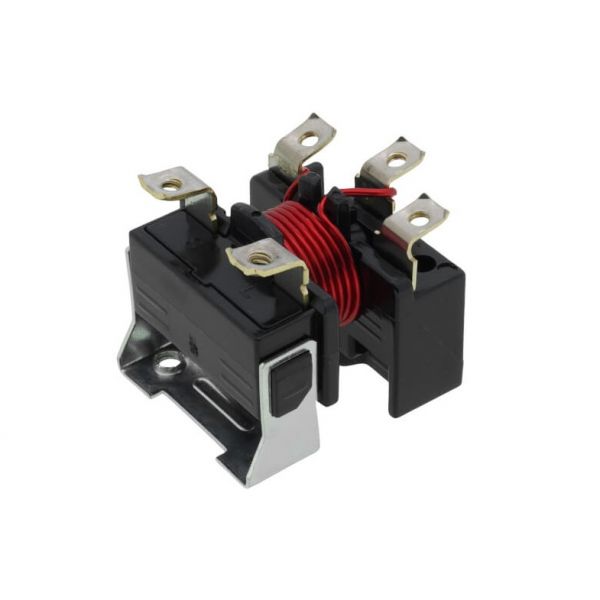

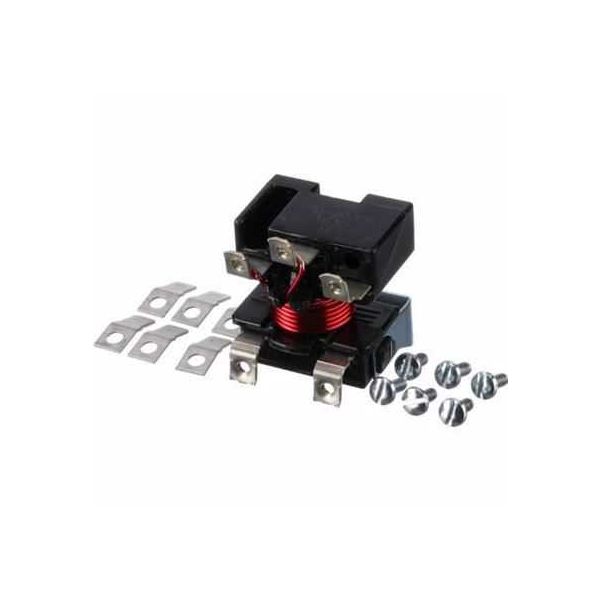

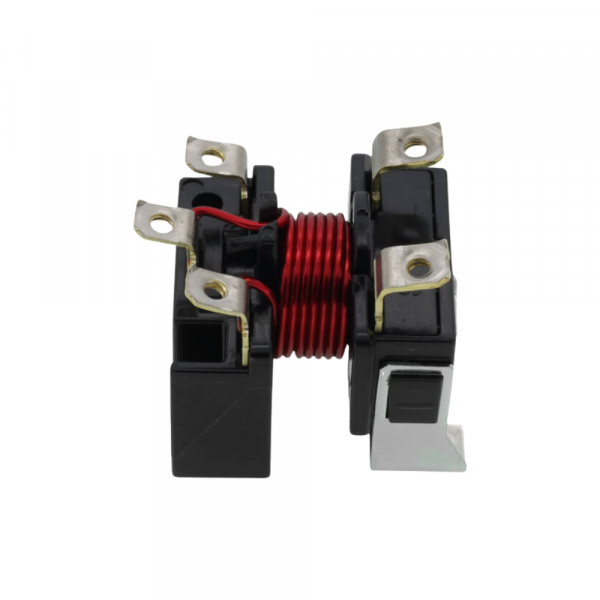

The Tecumseh K71-02 Relay is an electrical part that is used in HVAC system applications more specifically in the compressor of refrigeration and air conditioning equipment. This used as a switch that regulates the flow of electricity to the compressor depending on the need of the system. It also reduces overload and helps in the proper functioning of the compressor and increases efficiency. Applicable in refrigerators, freezers and air conditioners among other HVAC systems it enhances system efficiency and compressor durability. Its advantages include energy saving decrease in the load on the compressor parts and increase in the level of safety. Perfect for use in both the residential and commercial this relay will provide reliable service and no electrical issues.
What maintenance is required for the Tecumseh K71-02 Relay?
Regularly inspect the relay for dust, corrosion, or loose connections. Ensure terminals are tight and contacts are clean. Proper maintenance prevents electrical malfunctions and ensures accurate operation. Always disconnect power before servicing to maintain safety.
What are common issues with the Tecumseh K71-02 Relay?
Relay fails to engage or trips intermittently.
Overheating under load.
Corroded or pitted contacts.
Clicking noises without proper operation.
Installation Steps
Step1: Turn off the appliance and disconnect power to prevent electrical shock.
Step2: Locate the old relay on the compressor or control board and carefully remove it.
Step3: Inspect the terminals and clean any corrosion or debris.
Step4: Align the new relay with the terminals and push or screw it securely into place.
Step5: Ensure all connections are tight and properly seated.
Step6: Reconnect power and test the appliance for proper operation.
