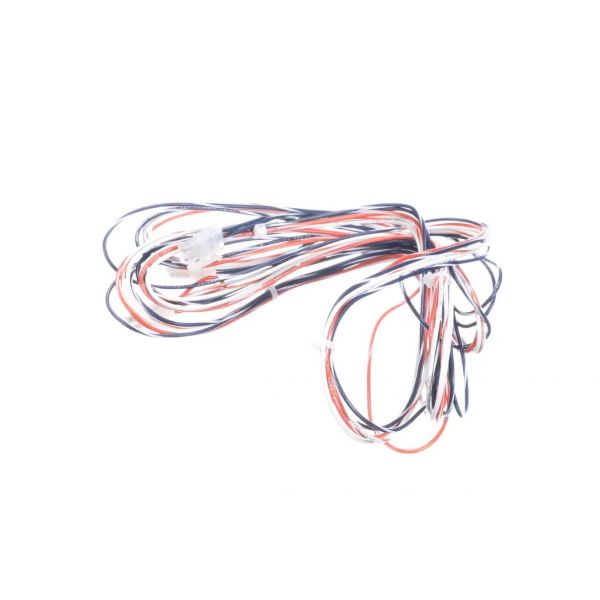

Raypak 016502F Wire Harness In/Out Sensor 302C-23

Rating:
5 5 1
1  Review Add Your Review
Special Price $68.45 Regular Price $77.95
In stock
SKU
016502F
The Raypak 016502F Wire Harness In/Out Sensor 302C-23 is an electrical component that must be used in HVAC systems to provide the opportunity to connect temperature sensors to the control board and monitor the work of the system properly. This component of the system works by relaying the signals of the in/out sensors to the control circuits, enabling the equipment to respond by changing the heating or cooling cycle. It is usually fitted in commercial and residential water heaters and boilers and plays a major role in the system concept, as it controls sensor communication and ensures uniform system response.
Add to Wish List
HVAC Controls & Electrical, Wire Harnesses
Manufacturer:
https://www.partshnc.com/media/catalog/product/0/1/016502f.jpg
Write Your Own Review
You're reviewing:Raypak 016502F Wire Harness In/Out Sensor 302C-23
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Raypak 016502F Wire Harness In/Out Sensor?

Regularly inspect the harness for frayed wires, corrosion, or loose connections. Clean connectors if needed and ensure sensors are securely mounted. Proper maintenance ensures accurate readings and prevents operational errors or safety hazards.

What are common issues with the Raypak 016502F Wire Harness?

  • Intermittent or no signal due to loose connections.
  • Corrosion at terminals causing poor conductivity.
  • Sensor misreading temperatures.
  • Wire insulation damage from heat or abrasion.

Installation Steps

Step 1: Turn off all power to the heating system before installation.

Step 2: Remove the access panel to reach the existing sensor wiring.

Step 3: Disconnect the old sensor harness, noting wire connections.

Step 4: Install the new Wire Harness, connecting wires to the correct terminals.

Step 5: Secure the harness to prevent contact with hot or moving parts.

Step 6: Replace the access panel, restore power, and verify proper sensor operation.
