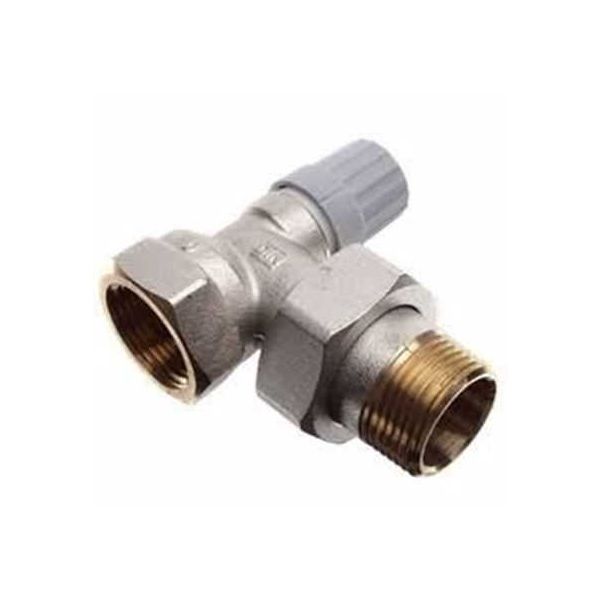

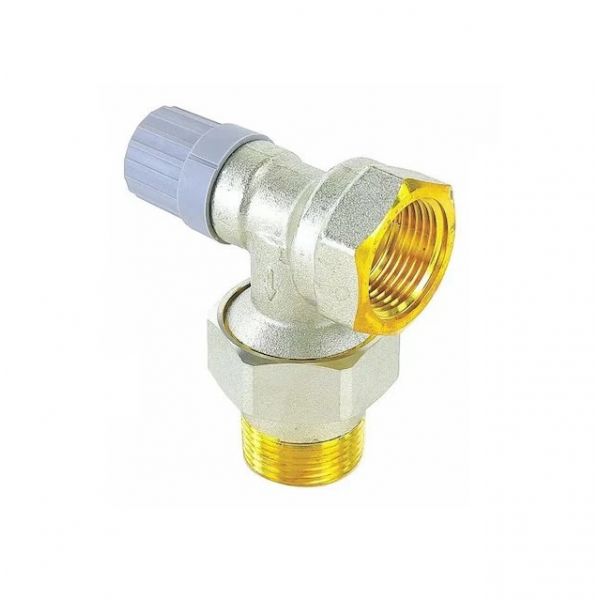

Danfoss 013G-8024 Thermostatic Radiator Valve 1" Angle Body RA2000

Special Price $115.86 Regular Price $133.24
In stock
SKU
013G-8024
The Danfoss 013G-8024 Angle Body Valve RA2000 is a high-performance radiator valve designed to regulate temperature in HVAC systems. This RA2000 series 1” angle body valve allows for accurate flow regulation since it has a Kvs value of 2.8 m³/h. It is made for high performance, and has a temperature range of up to 250°F and pressure of 145-232 PSI. The valve has FNPT 1” inlet and MNPT 1” outlet connection which allows it to be used in any HVAC system. The RA2000 valve is suitable for heating systems because it enhances the functionality of the radiator, therefore raising efficiency and comfort.
Manufacturer:
https://www.partshnc.com/media/catalog/product/0/1/013g-8024.jpg

Specifications

  • Type: Angle Body Valve
  • Series: RA2000
  • Kvs values: 2.8 m³/h
  • Inlet size: FNPT 1"
  • Outlet Size: MNPT 1"
  • Temperature: 250°F
  • Pressure: 145 to 232 PSI
  • Product group: Radiator Valves
  • Weight: 1.37lbs

Product Overview:
Regulates the flow of heating water or steam through radiator-based heating equipment. The Danfoss 013G-8024 RA2000 is a one-inch angle-pattern radiator valve body designed to control the flow of the heating medium through the connected radiator circuit. It provides the valve mechanism that works with a compatible thermostatic radiator operator to support room temperature regulation. The valve body and operator perform complementary roles in managing heat delivery through the radiator.

Flow Regulation:
Controls the passage of heating water or steam through the radiator connection. The valve mechanism responds to the movement of its operating component, adjusting the available flow path to help regulate heat delivery. This flow-control function supports the operation of radiator heating systems by managing the amount of heating medium passing through the connected equipment.

Radiator Control:
Provides the mechanical valve body for a thermostatic radiator control arrangement. When fitted with an appropriate operator, the valve can regulate heating-medium flow according to the temperature-control demand. Its angle configuration supports the piping arrangement at the radiator connection, while the valve body provides the flow-control point within the heating circuit.

Replacement Guidelines:
Replace the Danfoss 013G-8024 RA2000 Radiator Valve Body when the valve shows leakage, physical damage, corrosion, or a confirmed mechanical fault that affects flow regulation. Persistent leakage around the valve body or failure of the valve mechanism to control the heating-medium flow may indicate the need for replacement. Inspect the connected operator and valve assembly to identify whether the fault originates in the valve body or another control component.

Common Failure Symptoms:

  • Water or steam leakage occurs around the radiator valve body or its connections.
  • Heating-medium flow through the radiator becomes restricted.
  • The radiator receives continuous or insufficient heating-medium flow despite control adjustments.
  • The valve mechanism fails to respond properly to the connected operator.
  • Visible corrosion, cracking, or physical deterioration affects the valve body.

Equipment Compatibility:
The Danfoss 013G-8024 belongs to the RA2000 radiator valve range. Danfoss identifies RA2000 valve applications across hydronic heating and low-pressure steam systems. Confirm the system type, pipe connection, valve configuration, and required operator before selecting this valve body. The valve body requires a compatible thermostatic radiator operator for thermostatic control; the operator should not be assumed to be included with the valve body.

Technical Specifications:
Brand: Danfoss
Part Number: 013G-8024
Component Type: Radiator Valve Body
Product Series: RA2000
Valve Size: 1 inch
Valve Configuration: Angle Body

Write Your Own Review
You're reviewing:Danfoss 013G-8024 Thermostatic Radiator Valve 1" Angle Body RA2000
Your Rating
Customer Questions
What is the Danfoss 013G-8024 radiator valve body used for?

It controls the flow of heating water or steam through a radiator as part of a radiator temperature-control system.

Does the RA2000 valve body include a thermostatic operator?

The valve body requires a compatible thermostatic radiator operator for automatic temperature control. The operator should be verified separately when purchasing.

How does an angle-pattern radiator valve support pipe installation?

Its angled inlet and outlet arrangement connects the heating pipe to the radiator where the piping layout requires a change in direction.

What should be checked during radiator valve maintenance?

Check whether the valve mechanism moves freely and whether the connected operator responds properly during system operation. Routine inspection can help identify changes in valve performance.

When should a radiator valve body be replaced?

Replacement may be necessary when a confirmed mechanical fault prevents the valve from regulating heating-medium flow, even after the connected operator has been checked.
