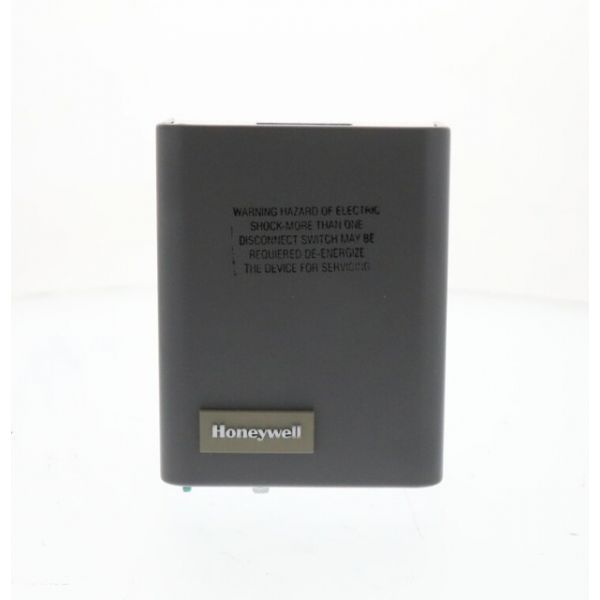

Resideo R847A1085 DPST Heavy Duty Switching Relay 120V
Special Price $159.94 Regular Price $183.93
In stock
SKU
R847A1085
The Resideo R847A1085 Heavy Duty Switching Relay is a versatile DPST (Double Pole Single Throw) relay providing switch stability in HVAC applications. This is a strong relay with internal, flexible leads that can allow SPST or DPST switching, therefore ideal for a variety of control uses. It has an electrical rating of 8.4 VA when enclosed and 21.4 VA at the start that ensures reliable performance. It has a 50/60 Hz frequency and communicates through the primary 2-wire and control circuit 2-wire communication system.
Manufacturer:
Specifications
- Type: Heavy Duty Switching Relay
- Product Features: Internal, flexible leads permit SPST or DPST switching
- Approvals and Standards: UL Listed- File No. SA481, Guide No. SDF4, CSA Certified- File No. LR1620
- Coil Electrical Rating: 8.4 VA (Sealed), 21.4 VA (inrush)
- Coil Connection Type: Main 2 Wire, Control Circuit 2 Wire
- Frequency: 50/60 Hz
- Switch Action: DPST or SPST
- Dimensions: 2.75" x 4.25" x 5.25"
