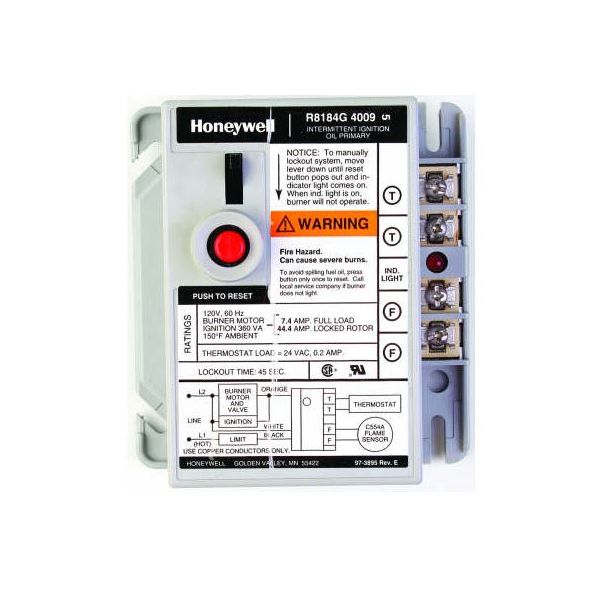

Resideo R8184G4009 Protectorelay Oil Burner Control 45 Sec Intermittent 120V

Be the first to review this product
Special Price $144.84 Regular Price $166.56
In stock
SKU
R8184G4009
The Resideo R8184G4009 Protectorelay Oil Burner Control is a essential part of oil-fired heating systems. This device aims at regulating the oil heater, oil valve, and igniting converter based on a heat signal. Its intermittent ignition type and manual trip level on the safety switch make it possible to have a reliable burner shutdown during maintenance, which increases safety. The control, which features a lockout alert LED, allows it to be easy to identify system problems. It has UL component recognition and CSA certification, therefore it acquaints safety and reliability standards. It has electrical specifications of 7.4 A at 102 VAC and 44.4 A at locked rotor for full load, which makes it efficient.
Add to Wish List
Manufacturer:
https://www.partshnc.com/media/catalog/product/r/8/r8184g4009_resideo_partshnc.jpg

Specifications

  • Type: Oil Burner Control
  • Application: Controls oil burner, oil valve and the ignition transformer in response to a call for heat
  • Approvals and Standards: UL Component Recognized, File no. MP268, Vol. 35 Sec. 1,3, CSA Certified, File no. LR95329-1: Includes: With an LED for lockout indication, Manual trip level on safety switch to assure burner shutdown during servicing
  • Ignition Type: Intermittent
  • Electrical Ratings at Full Load: 7.4 A @ 102 VAC, 3.7 A @ 240 VAC
  • Electrical Ratings at Locked Rotor: 44.4 A @ 120 VAC, 22.2 A @ 240 VAC
  • Colour: Gray
  • Dimensions: 4.06" x 2.94" x 4.38"

Product Overview:
Coordinates burner startup and ignition-related electrical functions in oil-fired heating equipment while applying a defined safety timing sequence. The Resideo R8184G4009 Protectorelay Oil Burner Control Intermittent 45-Sec 120V is an OEM burner-control component designed for intermittent operation. Its 45-second safety timing and 120V electrical configuration define its specified control arrangement for applicable oil burner systems.

Ignition Control:
Coordinates discrete electrical outputs within the burner control circuit by establishing the required operating relationship between the ignition transformer, oil valve, and burner motor. The control circuitry determines the appropriate output state for each connected component according to the programmed control logic. This function focuses on electrical output coordination between individual burner-control devices rather than describing the overall heating or ignition sequence.

Safety Timing:
Monitors a defined safety interval through an internal timing circuit and changes the control state when the permitted interval expires. The timing mechanism provides a time-based limit for the applicable burner-control condition, allowing the control to transition to its designated safety state when required. This function focuses exclusively on timed monitoring and safety-state transition rather than electrical output coordination.

Replacement Guidelines:
Replace the Resideo R8184G4009 Protectorelay Oil Burner Control Intermittent 45-Sec 120V when the existing oil burner control has deteriorated, has been removed during service, or no longer provides adequate burner-control function. Renew the control during applicable maintenance or component replacement to restore the required burner-control function and support proper oil burner operation.

Common Failure Symptoms:

  • Oil burner control fails to initiate the ignition sequence.
  • Burner control operation becomes intermittent or inconsistent.
  • Safety control response becomes delayed during operation.
  • Control fails to maintain the required burner sequence.
  • Burner control resets unexpectedly during operation.

Equipment Compatibility:
The Resideo R8184G4009 Protectorrelay Oil Burner Control Intermittent is intended for corresponding oil-fired equipment requiring an intermittent oil burner control with a 45-second timing configuration and 120V electrical configuration. Its application depends on the associated oil burner and control arrangement. Verify the R8184G4009 equipment model and manufacturer’s parts documentation before ordering.

Technical Specifications:
Brand: Resideo
Part Number: R8184G4009
Product Type: Oil Burner Control
Control Type: Protectorelay
Operation: Intermittent
Safety Timing: 45-Sec
Voltage: 120V

Reviews
Write Your Own Review
You're reviewing:Resideo R8184G4009 Protectorelay Oil Burner Control 45 Sec Intermittent 120V
Your Rating
Product Questions (5)
Customer Questions
What is the Resideo R8184G4009 oil burner control used for?

It coordinates the burner motor, oil valve, and ignition transformer during the burner operating sequence.

How does the safety timing function work?

It monitors the defined timing interval and changes the control state according to the safety sequence.

Why is intermittent ignition used in burner control?

It activates the ignition system as part of the burner-start sequence rather than keeping it continuously energized.

What signs may indicate a faulty oil burner control?

Failed burner startup, interrupted operation, or repeated safety shutdowns may indicate a control problem requiring inspection.

How should the R8184G4009 burner control be maintained?

Inspect for visible damage and deteriorated electrical connections. Have a qualified technician test the ignition and safety functions according to the manufacturer's instructions.
