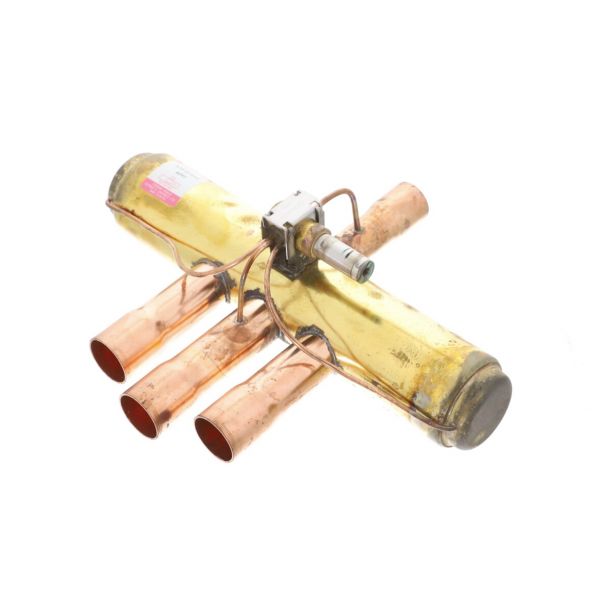

Mitsubishi Electric R63Y05154 4 Way Reversing Valve

Rating:
5 5 4
4  Reviews Add Your Review
Special Price $195.63 Regular Price $224.98
In stock
SKU
R63Y05154
The Mitsubishi Electric R63Y05154 4-Way Reversing Valve functions to make HVAC systems reversible in their flow of refrigerant. Its primary function as a 4-Way Reversing Valve is to reverse the flow of refrigerant for heat pump systems. Refrigerant is recalled by the condenser in the cooling mode to eject heat to the exterior region. They use heat exchangers to transfer heat from the interior to the exterior when it’s in heat, and vice versa, when it is in cool. This makes it possible for heat pumps to deliver air cooling which is a refrigeration activity and air heating which is a heating activity.
Add to Wish List
HVAC Controls & Electrical, Valves
Manufacturer:
https://www.partshnc.com/media/catalog/product/r/6/r63y05154.jpg

Specifications

  • Weight:3.36lbs
  • Type: 4-Way Reversing Valve
  • Material: Brass, Aluminum
  • Length: 4-6"
  • Diameter: 1.5-2.5"

PRODUCT OVERVIEW:
Installed within the refrigerant circuit of compatible HVAC equipment, the Mitsubishi Electric R63Y05154 4 Way Reversing Valve controls the direction of refrigerant flow between the system's heating and cooling paths. The four-way configuration allows the valve to redirect refrigerant through the connected heat-transfer components according to the selected operating mode. Its internal flow arrangement changes the refrigerant pathway to support the transition between heating and cooling operation.

REVERSING VALVE MECHANISM:
Within the refrigerant circuit, this four-way valve operates by altering internal refrigerant pathways based on system demand. Featuring four connection ports typically designated for the compressor discharge, compressor suction, outdoor coil, and indoor coil the internal mechanism shifts position to reverse fluid flow. When actuated, internal ports align to swap the roles of the indoor and outdoor heat exchanger coils, allowing heat absorption or heat rejection to match operating requirements.

HEAT PUMP SYSTEM FLOW CONTROL:
Within a heat pump system, this component serves as the central fluid direction controller. By physically changing the route of circulating refrigerant, the valve enables a single system to provide both space heating and space cooling. This directional management allows the indoor coil to act as an evaporator during cooling mode and function as a condenser during heating mode.

REPLACEMENT GUIDELINES:
Replacement may be appropriate when the four-way reversing valve develops internal leakage, becomes mechanically restricted, or fails to complete the required flow-direction change. For the Mitsubishi Electric R63Y05154, replacement may also be warranted when the valve body or connection ports show physical damage, severe corrosion, distortion, or thermal deterioration affecting refrigerant flow control.

Common Failure Symptoms:

  • Inability of the heat pump to switch between space heating and space cooling modes.
  • Thermal leakage or refrigerant bypassing internal ports, preventing temperature transfer.
  • Valve mechanism sticking or failing to shift completely during mode change requests.
  • Visible structural damage, cracking, or severe degradation on the valve body or ports.

EQUIPMENT COMPATIBILITY:
The Mitsubishi Electric R63Y05154 valve fits heat pump systems configured for four-way reversing valve flow management. Prior to installation, confirm that the part number, port sizing, and system layout match the specifications of the targeted Mitsubishi Electric unit.

Technical Specifications:
Product identification:
Brand: Mitsubishi Electric
Part Number: R63Y05154
Product Type: 4 Way Reversing Valve
Physical specifications:
Configuration: 4-Port Body

Reviews 4
Write Your Own Review
You're reviewing:Mitsubishi Electric R63Y05154 4 Way Reversing Valve
Your Rating
Product Questions (7)
Customer Questions
What maintenance is required for the Mitsubishi Electric R63Y05154 4-Way Reversing Valve?

Inspect the valve for leaks, corrosion, or unusual noises during operation. Clean connections and ensure proper refrigerant flow. Check electrical connections if applicable. Routine maintenance ensures efficient heating/cooling reversal and prevents system damage.

What are common issues with the Mitsubishi Electric R63Y05154 4-Way Reversing Valve?

  • Valve sticking or failing to switch properly.
  • Leaks at connection points.
  • Reduced refrigerant flow or pressure imbalances.
  • Corrosion or damage to internal components.

What does the Mitsubishi Electric R63Y05154 4 Way Reversing Valve do?

The Mitsubishi Electric R63Y05154 redirects refrigerant flow within compatible heat-pump equipment to support heating and cooling operation.

How does a four-way reversing valve change refrigerant direction?

The valve shifts its internal flow arrangement to redirect refrigerant through different circuit paths within the heat-pump system.

What happens when the reversing valve changes position?

Changing the valve position alters the refrigerant pathway so the indoor and outdoor heat exchangers can exchange their heating and cooling roles.

How does the R63Y05154 support heat-pump operation?

The R63Y05154 changes refrigerant routing within the system, allowing the heat pump to transition between heating and cooling modes.

Where does a four-way reversing valve fit in a heat-pump system?

A four-way reversing valve is installed within the refrigerant circuit between the compressor and the indoor and outdoor heat-exchanger pathways.

Installation Steps

Step1: Turn off power and recover refrigerant from the system to prevent injury.

Step2: Remove the existing 4-way reversing valve carefully, noting refrigerant line positions.

Step3: Inspect the connections and clean the valve mounting area.

Step4: Install the Electric reversing valve, aligning the inlet and outlet ports correctly.

Step5: Secure the valve with mounting brackets and tighten fittings.

Step6: Reconnect refrigerant lines, evacuate, and recharge the system.

Step7: Restore power and test the system for proper heating and cooling operation.
