Product Overview:

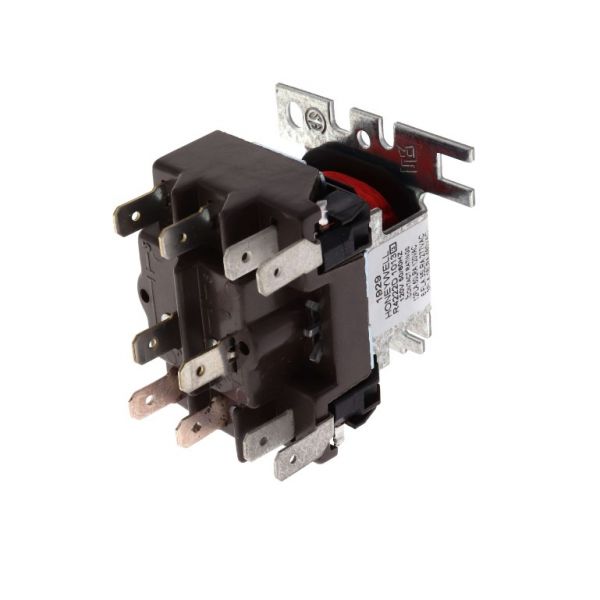

Transfers electrical connections between designated circuit paths through electromagnetic relay actuation. The Resideo R4222D1013 DPDT General Purpose Relay With Switching 12A 120V is an OEM electrical switching component featuring DPDT contacts, a 12A switching rating, and a 120V coil. Its contact arrangement supports controlled switching of connected electrical circuits in applicable equipment.
Power Handling:
Handles the electrical load presented to the relay contacts within the connected circuit. The contact system is designed to carry the current associated with the connected load while maintaining the required electrical path during the relay's energized state. This function focuses specifically on the relay's electrical load-handling capability, including the relationship between contact capacity and the connected circuit demand, without describing relay actuation, contact transfer, or circuit identification.
Circuit Identification:
Provides terminal markings and a circuit diagram that identify the relay's individual connection points and contact relationships. The molded designations correspond to the internal contact arrangement, allowing each terminal and its associated circuit path to be distinguished from the others. This function focuses exclusively on recognizing the relay's electrical connection layout and contact configuration, without describing load handling or relay operating behavior.
Replacement Guidelines:
Replace the Resideo R4222D1013 DPDT General Purpose Relay With Switching 12A 120V when the existing relay has deteriorated, has been removed during service, or no longer provides adequate electrical switching. Renew the relay during applicable maintenance or component replacement to restore the required switching function and support proper electrical circuit control.
Common Failure Symptoms:
- Relay contacts fail to transfer when the coil is energized.
- Switching between DPDT contact positions becomes irregular.
- Coil activation produces an inconsistent relay response.
- Contact state remains unchanged after energization.
- Switching response varies across successive control cycles.
Equipment Compatibility:
The Resideo R4222D1013 DPDT General Purpose Relay With Switching is intended for corresponding equipment requiring a DPDT general-purpose relay with switching capability, a 12A rating, and 120V electrical configuration. Its application depends on the associated equipment and electrical control arrangement. Verify the R4222D1013 equipment model and manufacturer’s parts documentation before ordering.
Technical Specifications:
Brand: Resideo
SKU: R4222D1013
Relay Type: General Purpose Relay With Switching
Switching: DPDT
Current Rating: 12A
Voltage: 120V
